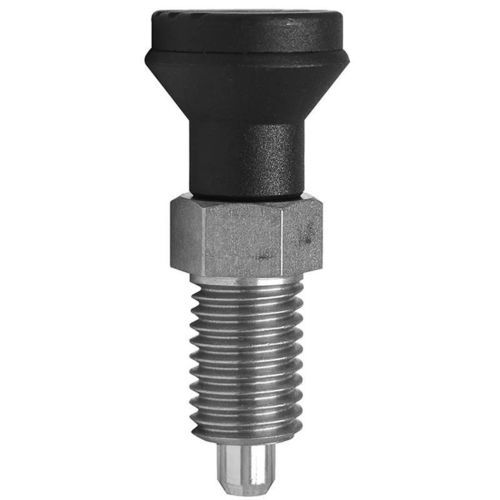

Lockable indexing plunger SR5408

Product Details
Non-Locking Threaded Index Plungers allow for rapid adjustments on a variety of platforms, fixtures, and tables. They are used for locating, positioning, indexing and securing on applications such as gym equipment, medical aids, catering equipment, conveyors, etc.

• Series Code: SR5408, SR6564, SR6565

Available Variants (examples)

• Body Thread Size: M6, M6 x 0.75, M8, M8 x 1, M8 x 1.0, M10, M10 x 1, M10 x 1.0, M12, M12 x 1.5, M12 x 1,5, M16, M16 x 1.5, 16 x 1.5
• Overall Length: 26.5 mm, 27.5 mm, 30.0 mm, 30.5 mm, 32.5 mm, 33.0 mm, 34.0 mm, 39.5 mm, 40.0 mm, 40.5 mm, 42.5 mm, 43.0 mm, 43.5 mm, 46.0 mm, 47.5 mm, 49.0 mm, 52.0 mm, 55.0 mm, 59.0 mm, 63.5 mm, 68.0 mm (and imperial equivalents)
• Bolt Length: 5.0 mm, 6.0 mm, 7.0 mm, 8.0 mm, 8.1 mm, 10.0 mm, 12.0 mm, 13.5 mm, 16.0 mm, 16.5 mm, 17.0 mm, 20.0 mm, 20.5 mm, 24.0 mm (and imperial equivalents)
• Head Diameter: 12.0 mm, 16.0 mm, 17.5 mm, 18.0 mm, 18.2 mm, 21.0 mm, 24.0 mm, 25.0 mm, 28.0 mm, 33.0 mm (and imperial equivalents)
• Handle Locking Type: Locking, Non-Locking
• Initial End Force: 1.00 N, 3.00 N, 5.00 N, 6.00 N
• Final End Force: 7.0 N, 7.00 N, 12.00 N, 21.00 N, 22.00 N, 24.00 N

Applications

• Gym equipment
• Medical aids
• Catering equipment
• Conveyors
• Fixtures and tables

Characteristics / Technical Specifications

• Product Type: Indexing Plungers
• Locking and Non-Locking versions available
• Threaded body
• Rapid adjustment capability
• Used for locating, positioning, indexing, and securing
• Multiple thread sizes and lengths available
• Initial End Force: 1.00 N to 6.00 N
• Final End Force: 7.0 N to 24.00 N
• Head Diameter: 12.0 mm to 33.0 mm (varies by model)
• Overall Length: 26.5 mm to 68.0 mm (varies by model)
