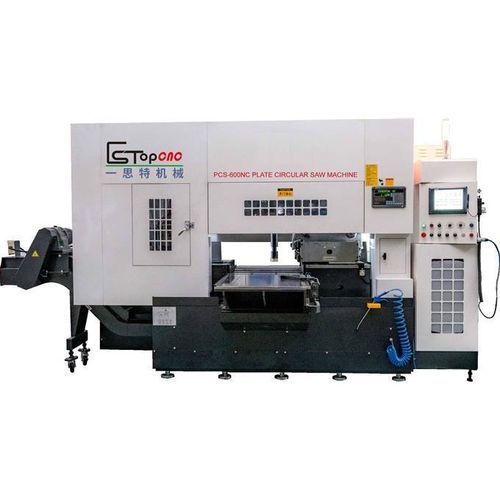

PCS-600NC Mold steel plate circular Sawing Machine

Main technical parameters
CNC HIGH SPEED SAW MACHINE PCS-600NC

PCS-600NC Specifications (table)
No. | Item | Description | Specification
1 | Machine | CNC sawing machine | PCS-600NC
2 | Cutting capacity - Control axis number | Control axis number | 2
2 | Cutting capacity - Cutting thickness mm | Cutting thickness mm | 20-100
2 | Cutting capacity - Cutting width mm | Cutting width mm | 50-700
2 | Cutting capacity - Cutting length mm | Cutting length mm | 20-1000
2 | Cutting capacity - Automatic feeding length mm | Automatic feeding length mm | 4000 (It can be cycled multiple times)
3 | Spindle - Spindle speed (Infinitely variable speeds) rpm | Spindle speed rpm | 50-250
3 | Spindle - Spindle power KW | Spindle power KW | 11/15
3 | Spindle - Saw blade diameter mm | Saw blade diameter mm | 500
4 | X/Z axis - X axis / Z axis | X/Z axis motor power KW | 4.5/3.7
4 | X/Z axis - X/Z automatic feed speed mm/min | X/Z automatic feed speed mm/min | 100-350
4 | X/Z axis - X/Z fast moving mm/min | X/Z fast moving mm/min | 6.5m/min
5 | Accuracy - Parallelism mm | Parallelism mm | ≤0.30
5 | Accuracy - Accuracy for dimension mm/300mm | Accuracy for dimension mm/300mm | ±0.15
6 | Tank capacity - Hydraulic oil tank L | Hydraulic oil tank L | 30
6 | Tank capacity - Lubrication oil tank L | Lubrication oil tank L | 3
7 | Power | Power | 380V/220V 20kw
8 | Weight and dimensions - Machine net weight T | Machine net weight T | 7
8 | Weight and dimensions - Machine area mm | Machine area mm | 4500*4000*2300
9 | Others - Cooling system | Cooling system | Oil mist/Water cooling
9 | Others - Air Pressure | Air Pressure | 0.6Mpa
9 | Others - Auto Run Method | Auto Run Method | Single/multiple
10 | Conveyor - Conveyor length mm | Conveyor length mm | 2000
11 | Movable bed - Max loading capacity KG | Max loading capacity KG | 2000

PCS-600NC Main parts (table)
Sort | Item | Quantity | Original | Remark
Machine parts | Ball screw | 2 | Taiwan | steady transmission, High accuracy, wear-proof
Machine parts | Guide rail | 2 | Taiwan | Strong stability
Machine parts | Main Spindle | 1 | ES-TOP | Low noise, high strength, Taiwan famous brand
Machine parts | Organ | 2 | Domestic | High strength, Strong durability, dust-proof, Protect the guide rail and ball screw.
Machine parts | Base casting | 1 | HT300 | Good stability, excellent wear-ability
Machine parts | Automatic Lub oil unit | 1 | Domestic | Electronic-self-lubrication, Quantitative oil supply to each part
Machine parts | Oil line | 2 | Domestic | Aluminium tube
Machine parts | Bearing | | Taiwan TPI | Taiwan famous brand, High accuracy, High quality
Electrical | CNC system | 1 | Taiwan JK | High accuracy Top brand of CNC
Electrical | Servo motor | 2 | Taiwan TK | High accuracy Top brand of CNC
Electrical | Spindle motor | 1 | MK/CTB | Multitronic, Meet the requirements of different processing speed
Electrical | AC contactor | 1 | French Schneider | Famous brand, steady property
Electrical | Relay | 1 | French Schneider | Famous brand, steady property

Caractéristiques / spécifications techniques

• Product type: CNC high speed circular sawing machine for mold steel plates
• Model: PCS-600NC
• Control axes: 2
• Cutting thickness: 20-100 mm
• Cutting width: 50-700 mm
• Cutting length: 20-1000 mm
• Automatic feeding length: 4000 mm (can be cycled multiple times)
• Spindle speed: 50-250 rpm (infinitely variable)
• Spindle power: 11/15 kW
• Saw blade diameter: 500 mm
• X/Z axis motor power: 4.5/3.7 kW
• X/Z feed speed: 100-350 mm/min
• X/Z rapid traverse: 6.5 m/min
• Parallelism: ≤0.30 mm
• Accuracy for dimension: ±0.15 mm / 300 mm
• Hydraulic oil tank capacity: 30 L
• Lubrication oil tank capacity: 3 L
• Power supply / total power: 380V/220V, 20 kW
• Machine net weight: 7 T
• Machine footprint (L*W*H): 4500*4000*2300 mm
• Cooling system: Oil mist / Water cooling
• Required air pressure: 0.6 MPa
• Auto run method: Single / multiple
• Conveyor length: 2000 mm
• Movable bed max loading capacity: 2000 kg
