Electric cut-off saw PCS-1000NC

for metalsfor steel

Product overview

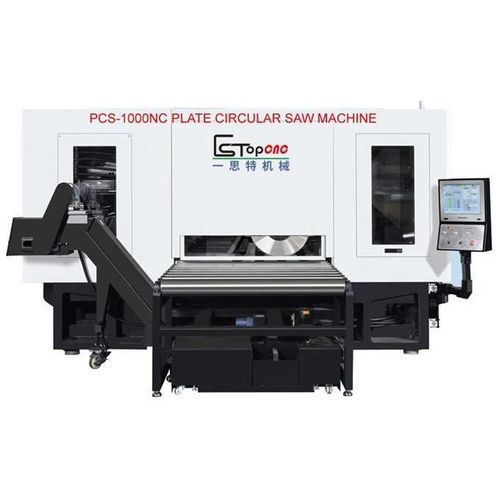

PCS-1000NC is a CNC steel plate circular sawing machine designed for high-speed cutting of steel plates. It integrates automatic feeding, adjustable cutting dimensions and a conveyor for continuous or cyclic production.

Main technical parameters

• Model: PCS-1000NC
• Machine type: CNC steel plate circular sawing machine (high-speed saw)
• Control axes: 2
• Cutting thickness: 20–100 mm
• Cutting width: 380–1000 mm
• Cutting length: 140–1000 mm
• Automatic feeding length: 4000 mm (can be cycled multiple times)
• Spindle speed: 50–250 rpm (infinitely variable)
• Spindle power: 11/15 kW
• Saw blade diameter: 500 mm
• X/Z axis motor power: 4.5 kW / 3.7 kW
• X/Z automatic feed speed: 100–350 mm/min
• X/Z rapid traverse: 6.5 m/min
• Parallelism: ≤0.15 mm
• Dimensional accuracy: ±0.1 mm / 300 mm
• Hydraulic oil tank: 30 L
• Lubrication oil tank: 3 L
• Power supply / total power: 380V/220V, 25 kW
• Machine net weight: 13 t
• Footprint (L×W×H): 6000 × 3500 × 2200 mm
• Cooling system: water cooling
• Air pressure: 0.6 MPa
• Auto run mode: single/multiple
• Conveyor length: 3000 mm
• Movable bed max load: 3500 kg
• Key components: Taiwan ball screws and guide rails, Taiwan TPI bearings, Taiwan JK CNC system, Taiwan TK servo motors, ES-TOP main spindle, Schneider electrical components

Main components

• Ball screw: 2 (Taiwan) — precise transmission, wear-resistant
• Guide rail: 2 (Taiwan) — stability for linear motion
• Main spindle: 1 (ES-TOP) — low noise, high rigidity
• Organ (protective units): 2 (domestic) — dust protection for guide rails and ball screws
• Base casting: 1 (HT300) — dimensional stability
• Automatic lub oil unit: 1 (domestic) — electronic self-lubrication, metered oil supply
• Oil line: 2 (domestic) — aluminium tube
• Bearings: (Taiwan TPI) — precision bearings
• CNC system: 1 (Taiwan JK) — CNC control unit
• Servo motors: 2 (Taiwan TK) — drive motors for axes
• Spindle motor: 1 (MK/CTB) — variable speed spindle drive
• AC contactor / Relay: 1 each (Schneider) — electrical protection and control

Applications and operational notes

• Intended for cutting steel plates in production lines, workshops and steel service centers
• Supports continuous production with automatic feeding and conveyor
• Adjustable cutting dimensions for batches and varied part sizes
• Requires electrical supply 380V/220V and compressed air at 0.6 MPa
• Provide level foundation and crane for installation (machine net weight 13 t)
