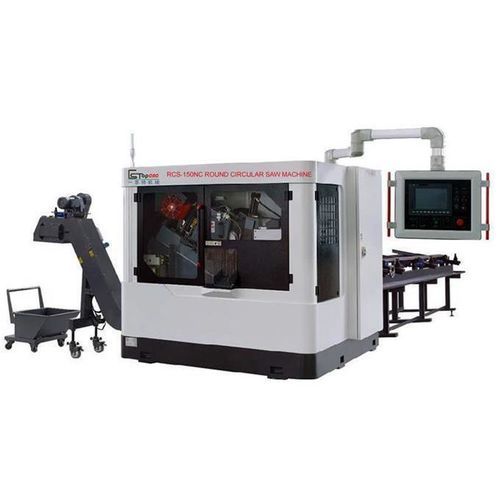

Electric cut-off saw RCS-150NC

hydraulicfor metalsfor steel

RCS-150NC circular sawing machine — overview

Cutting capacity
Round bar: 50–150 mm
Angles: 50–105 mm
Round pipe: 50–150 mm
Square pipe: 50–105 mm

Saw head / main shaft
TCT blade: Φ460 × 2.7t
Blade speed: 30–125 rpm (variable)
Chip remover on blade: round brush

Motor and drive
Main shaft drive motor: 30 kW (secondary spec: 18.5 kW / 25 Hp / 4p)
AC servo motor — head: 5.0 kW
AC servo motor — feeding device: 2.0 kW
Hydraulic drive motor: 3.7 HP / 4p

Hydraulic system
Drive pressure: 70 kg/cm² (7 MPa)
Hydraulic tank capacity: 150 L

Air pressure device
Working pressure: 4–6 kg/cm² (55–85 psi)

Fixed length feeding mechanism (GFC)
End cutting: 2–99 mm
Minimum remnant length: 85 + δ mm
Workpiece feeding length (single time): 780 mm

Machine size and weight
Dimensions (L × W × H): 7133 × 3602 × 2800 mm
Weight: 5800 kg

Main parts
No. 1 — Human Machine Interface — Mitsubishi — Japan
No. 2 — PLC — Mitsubishi — Japan
No. 3 — Cutting feed servo motor — Mitsubishi — Japan
No. 4 — Feeding servo motor — Mitsubishi — Japan
No. 5 — Main low voltage components — Siemens — Germany
No. 6 — Switching power supply — Mingwei — Taiwan
No. 7 — Linear guides — Silver — Taiwan
No. 8 — Ball Screws — Silver — Taiwan
No. 9 — Spindle servo motor — Beauty Department — Shanghai
No. 10 — Hydraulic pumps — Yuken — Taiwan
No. 11 — Hydraulic Valve — Yuken — Taiwan
No. 12 — Hydraulic cylinder — Yuken — Taiwan
No. 13 — Thin oil lubrication system — ISHAN — Taiwan
No. 14 — Micro lubrication system — ILC — Italy
No. 15 — Spindle box drive belts — gates — USA
No. 16 — TCT Saw Blades — Kanefusa or Tenryu — Japan
No. 17 — Seals — NAK — Taiwan
No. 18 — Material racks — 3 meters — Domestic

Technical features / specifications

• Cutting capacities: round bar 50–150 mm; angles 50–105 mm; round pipe 50–150 mm; square pipe 50–105 mm.
• Saw blade: TCT Φ460 × 2.7t; blade speed variable 30–125 rpm; chip removal by round brush.
• Main shaft drive motor: 30 kW (alternative spec 18.5 kW / 25 Hp / 4p).
• Servo motors: head 5.0 kW; feeding device 2.0 kW; hydraulic drive motor 3.7 HP / 4p.
• Hydraulic system: operating pressure 70 kg/cm² (7 MPa); tank capacity 150 L.
• Air pressure: working range 4–6 kg/cm² (55–85 psi).
• Fixed-length feeding (GFC): end cutting 2–99 mm; minimum remnant 85+δ mm; single-feed length 780 mm.
• Machine dimensions (L×W×H): 7133 × 3602 × 2800 mm; weight: 5800 kg.
• Key components supplied by international brands (Mitsubishi, Siemens, Yuken, Kanefusa/Tenryu, etc.).
