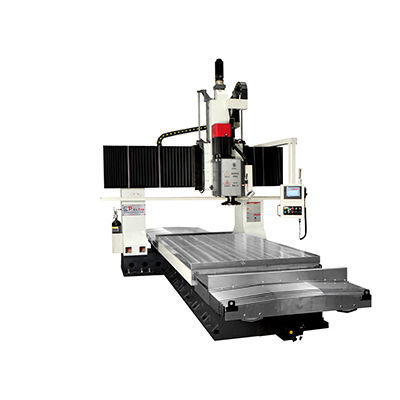

3-axis CNC milling machine VM-1520NC

verticalfor steelfor cast iron

Product overview
Double-column CNC vertical milling machine for combined face and side milling. Single-setting CNC control enables automatic workpiece loading-position setup, automatic measurement and simultaneous processing to reduce manual idle time. FANUC controller optional. Two gearbox spindles for face and side milling ensure repeatable dimensional accuracy and flatness.

Product photos and main technical parameters
Images and schematic views are provided for the VM series vertical milling machines, showing machine layout, access areas and principal dimensions and parameters.

Specifications

• Model: Double Column CNC Precision Vertical Milling Machine — VM-1420NC (related: VM-1520NC, VM-1320NCS)
• Face milling max size: 1200 × 2500 mm
• Side milling max size: 1200 × 2000 mm
• Worktable net / electric permanent table: 1200 × 2000 mm
• Maximum loading weight: 6000 kg
• Vertical head spindle: 11 kW — taper BT50 (7:24) — mainshaft speed 50–500 rpm — cutting diameter 250 mm
• Side milling head (gear/manual): spindle power 22 kW — taper BT50 (7:24) — speeds: 75 / 115 / 165 / 240 / 345 / 505 rpm — cutting diameter 250 mm
• Travel speeds X / Y / Z: 0–8000 mm/min
• X / Y / Z axis motors: 3 / 3 / 3 kW
• Machine dimensions (L×W×H): 5700 × 3300 × 2100 mm — weight: approx. 13,000 kg

Configuration

• Main: Double Column CNC vertical milling machine for face and side milling; NC controller Mitsubishi E80 (FANUC option); two gearbox spindles; page model references: VM-1320NCS / VM-1520NC
• Standard configuration items: electric permanent worktable; screw-type automatic cleaning; tool set and trolley; half-closed sheet-metal enclosure; electrical box air cooling; automatic workpiece measuring; automatic cutting system; air pressure system with blowing and automatic measurement; working light; status indicator light; nitrogen balance weight system; operator interface with automatic protection, diagnostics and display

Accessories

• Face cutter 200 mm — 2 sets
• Transformer (380 V to 220 V) — 1 set

Technical characteristics / specifications

• Model family: VM series — commercial reference VM-1420NC
• Face milling capacity: 1200 × 2500 mm
• Side milling capacity: 1200 × 2000 mm
• Worktable size and type: 1200 × 2000 mm, electric permanent
• Max loading weight: 6000 kg
• Spindle taper: BT50 (7:24) both heads
• Mainshaft speed range: 50–500 rpm; side spindle speeds: 75 / 115 / 165 / 240 / 345 / 505 rpm
• Cutting diameter (both heads): 250 mm
• Feed speeds X/Y/Z: 0–8000 mm/min
• Axis motor power: 3 kW per axis
• Overall size: 5700 × 3300 × 2100 mm; machine weight ≈ 13,000 kg
