3-axis CNC milling machine VM-8015NC
verticalfor steelBT 50

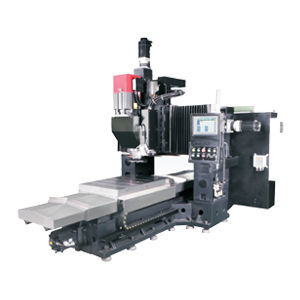

3-axis CNC milling machine - VM-8015NC - ESTOPCNC - vertical / for steel / BT 50
3-axis CNC milling machine - VM-8015NC - ESTOPCNC - vertical / for steel / BT 50
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Machined material
for steel
Spindle mount
BT 50
Associated functions
cutting
Applications
heavy-duty
Other characteristics
precision
X travel

1,500 mm
(59.06 in)

Y travel

1,300 mm
(51.18 in)

Z travel

290 mm
(11.42 in)

Rotational speed

Max.: 500 rpm
(3,142 rad.min-1)

Min.: 50 rpm
(314 rad.min-1)

Power

11 kW
(14.96 hp)

Workpiece max height

290 mm
(11 in)

Table load capacity

4,000 kg
(8,818 lb)

Weight

7,600 kg
(16,755.13 lb)

Overall length

4,500 mm
(177.2 in)

Overall width

2,900 mm
(114.2 in)

Overall height

2,100 mm
(82.7 in)

Description

Product overview
The VM-8015NC is a CNC vertical milling machine designed for precision machining of large workpieces. It features a 1500 × 800 mm worktable, BT50 spindle and an 11 kW spindle motor, suitable for heavy-duty milling tasks in industrial production environments.

VM-8015NC specifications
  • Model: VM-8015NC
  • Maximum machining length: 1500 mm
  • Maximum machining width: 1300 mm
  • Maximum processing height: 290 mm
  • Worktable size: 1500 × 800 mm
  • Maximum loading weight: 4000 kg
  • Spindle motor power: 11 kW
  • Spindle taper: BT50
  • Spindle speed: 50-500 RPM
  • X axis moving speed: 0-8000 mm/min
  • Y axis moving speed: 0-8000 mm/min
  • Z axis moving speed: 0-8000 mm/min
  • X/Y/Z axis motor power: 3 kW / 3 kW / 3 kW
  • Chips motor: 0.2 kW
  • Machine height: 2100 mm
  • Machine size (L × W): 4500 × 2900 mm
  • Machine weight: 7600 kg


Configuration (main / standard / accessories)
Main: CNC Precision Vertical Milling machine; NC Controller Taiwan LNC; Model: VM-8015NC; Quantity: 1 set

Standard configuration
  • Electric permanent worktable
  • Air cooling system electric box
  • Workpiece automatic measuring
  • Automatic cutting system
  • Air pressure system with blowing and automatic measurement
  • Working light
  • Working status indicator light
  • Nitrogen balance weight system
  • Human-machine interface system with automatic protection, diagnosis and display


Accessories
  • Face cutter 250 mm
  • Transformer (380 V to 220 V)
  • Scrap car


Technical characteristics
  • Model: VM-8015NC
  • Machine type: CNC vertical milling machine
  • Maximum machining length: 1500 mm
  • Maximum machining width: 1300 mm
  • Maximum processing height: 290 mm
  • Worktable size: 1500 × 800 mm
  • Maximum loading weight: 4000 kg
  • Spindle motor power: 11 kW
  • Spindle taper: BT50
  • Spindle speed: 50-500 RPM
  • X/Y/Z axis moving speed: 0-8000 mm/min
  • X/Y/Z axis motor power: 3 kW / 3 kW / 3 kW
  • Chips motor: 0.2 kW
  • Machine height: 2100 mm
  • Machine size (L × W): 4500 × 2900 mm
  • Machine weight: 7600 kg
