3-axis CNC milling machine VM-1825NC

verticalgantryBT 50

Product

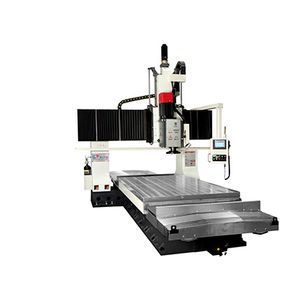

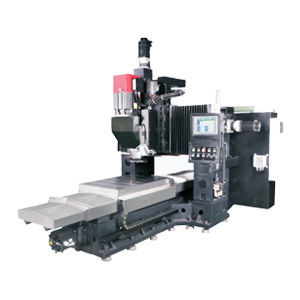

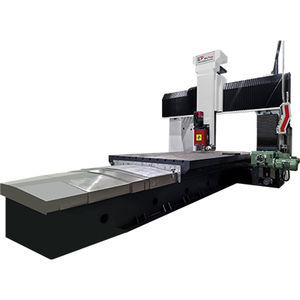

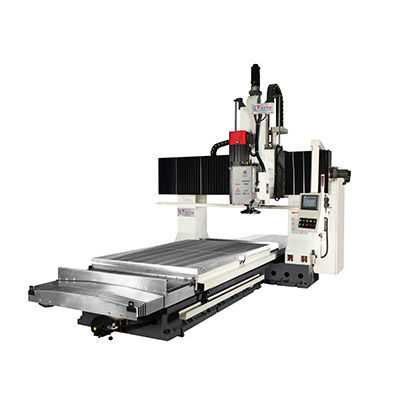

CNC gantry vertical milling machine VM-1825NC

Overview (text shown on page)
Industrial CNC gantry vertical milling machine with customizable controller and capacity for heavy cutting and large-format machining. Page references show multiple model identifiers: VM-2014NC (title), VM-1825NC (model), VM-2360NC (table heading).

Specifications (as shown on page)
Model | CNC gantry milling machine | VM-1825NC
Vertical milling capacity - Maximum machining length (mm) | 2500
Maximum machining width (mm) | 1400
Maximum processing height (mm) | 550
Sides milling capacity - Maximum machining length (mm) | 3000
Maximum machining width (mm) | 1400
Maximum processing height (mm) | 450
Worktable - Worktable size (mm) | 1400*3000
Max loading weight | 15000 kg
Vertical milling head - Spindle power (kW) | 15
Spindle taper | BT50 (7:24)
Speed of mainshaft (C/S) | 50-500
Cutting diameter (mm) | 250
Side milling head (manual) - Spindle speed (rpm) | 75/115/165/240/345/505
Spindle power (kW) | 15
Spindle taper | BT50 (7:24)
Z-axis balance - Nitrogen counterweight balance system | 4 pcs
Travelling speed - X axis (mm/min) | 0-6000
Y axis (mm/min) | 0-8000
Z axis (mm/min) | 0-8000
Motor power - X,Y,Z axis (kW) | 7.5, 3, 3
Cover | Metal protection, open top, house cover, CE standard
Inside width (mm) | 2300
Machine area (mm) | 7800*3600*4000
Machine weight (kg) | 19500

Technical features

• Model: VM-1825NC (page shows multiple references: VM-2014NC title, VM-1825NC model, VM-2360NC table heading)
• Machine type: CNC gantry / vertical milling machine
• Maximum machining length: 2500 mm
• Maximum machining width: 1400 mm
• Maximum processing height (vertical area): 550 mm
• Sides milling maximum machining length: 3000 mm
• Sides milling maximum processing height: 450 mm
• Worktable size: 1400 × 3000 mm
• Max loading weight: 15000 kg
• Vertical milling head spindle power: 15 kW
• Spindle taper: BT50 (7:24)
• Mainshaft speed (C/S): 50–500
• Cutting diameter: 250 mm
• Side milling head spindle speeds (rpm): 75 / 115 / 165 / 240 / 345 / 505
• Z-axis balance system: Nitrogen counterweight, 4 pcs
• Travelling speeds: X 0–6000 mm/min, Y 0–8000 mm/min, Z 0–8000 mm/min
• Axis motor power: X 7.5 kW, Y 3 kW, Z 3 kW
• Cover: Metal protection, open top, house cover (CE standard)
• Inside width: 2300 mm
• Machine footprint: 7800 × 3600 × 4000 mm
• Machine weight: 19,500 kg
