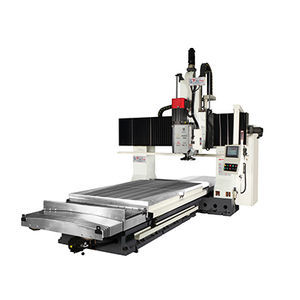

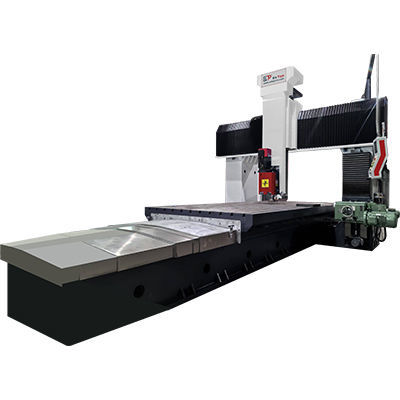

3-axis CNC milling machine VM-2660NC

verticalBT 50for the aerospace industry

Models
VM-2516NC; VM-2660NC; VM-2360NC

Overview
The VM-2660NC series are heavy-duty CNC gantry/vertical milling machines designed for large-format and long-bed machining. Suitable for industrial production, the machines combine a gantry layout with a house cover and comply with CE standards.

Key specifications

• Maximum machining length: 6000 mm
• Maximum machining width: 2600 mm
• Maximum processing height: 700 mm
• Sides milling capacity (L×W×H): 5800×2300×450 mm
• Worktable size: 2100×6000 mm; max loading weight: 15000 (unit as listed)
• Vertical spindle power: 22 kW; spindle taper: BT50 (7:24); mainshaft speed: 50–500 rpm; cutting diameter: 250 mm
• Side (manual) milling head: speeds 75/115/165/240/345/505 rpm; power 15 kW; spindle taper BT50
• Z-axis balance: Nitrogen counterweight system, 4 pcs
• Travelling speeds X / Y / Z: 0–6000 / 0–8000 / 0–8000 mm/min
• Axis motor power (X / Y / Z): 7.5 / 3 / 3 kW

Standard features

• BT50 spindle taper and gear-type vertical milling head
• Nitrogen counterweight balance system for Z-axis (4 pcs)
• Metal sheet house cover (open top) and CE compliance

Applications

• Large-part machining for heavy machinery, mold & die, energy, shipbuilding and aerospace industries

Footprint & weight

• Machine area (L×W×H): 14700×5000×4000 mm
• Inside width: 2300 mm; machine weight: 48000 Kg

Options & customization

• Control systems, tool changers, length/width variants, additional guarding or automation available on request
