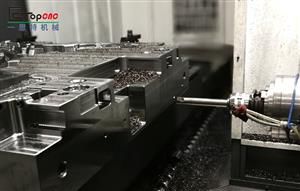

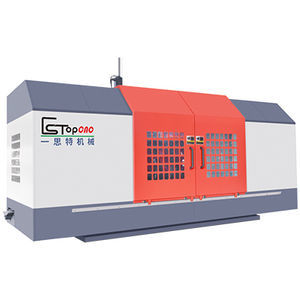

3-axis CNC milling machine HMC-3018NC

horizontalBT 50high-power

Machine Standard Specification
Model: HMC-3018NC

Process Range
Three axis travel (mm): 3000/1800/650
Spindle center to column guide (mm): 0-1800
Cutting Capacity (cm³/min): 800

Worktable
Worktable Size (mm): 3000*1500
MAX Loading weight (kg): 15000

Spindle
Spindle Speed (rpm): 0-3000rpm
Spindle Taper: BT50-φ220
Spindle Motor (KW): 30

Speed
Rapid Feeding (X/Y/Z) (m/min): 6/6/6
Rapid Cutting Feeding (X/Y/Z) (m/min): 5/5/5

Machine Accuracy
Positioning (mm): 0.02
Re-Positioning (mm): 0.015
Lubricating Oil Tank (L): 4
Machine size (mm): 9200×5200x4600
Machine weight (kg): 36000

System
Mitsubishi M80

Machine Main configuration

• Handheld operating unit — 1 pc
• Automatic lubrication system — 1 pc
• LED Warning Light — 1 pc
• Spindle blowing device — 1 pc
• Air curtain protection — 1 pc
• Flashlight — 1 pc
• Attached accessories — 1 pc
• Attached Technical agreement — 1 pc

Remarks

• Packing: Plywood box + Steel beam/wooden frame.
• Above offer without any commission.
• Above offer without any import tax and local transportation charge.
• Foundation will be done by buyer; if on-site installation and debugging service is required, a separate service fee of 5% is charged.
• English manual provided.

Technical specifications

• Model: HMC-3018NC
• Three axis travel (mm): 3000/1800/650
• Worktable Size (mm): 3000*1500
• Max Loading weight (kg): 15000
• Cutting Capacity (cm³/min): 800
• Spindle Speed (rpm): 0-3000
• Spindle Taper: BT50-φ220
• Spindle Motor (KW): 30
• Rapid Feeding (X/Y/Z) (m/min): 6/6/6
• Rapid Cutting Feeding (X/Y/Z) (m/min): 5/5/5
• Positioning (mm): 0.02
• Re-Positioning (mm): 0.015
• Lubricating Oil Tank (L): 4
• Machine size (mm): 9200×5200x4600
• Machine weight (kg): 36000
• Control System: Mitsubishi M80
