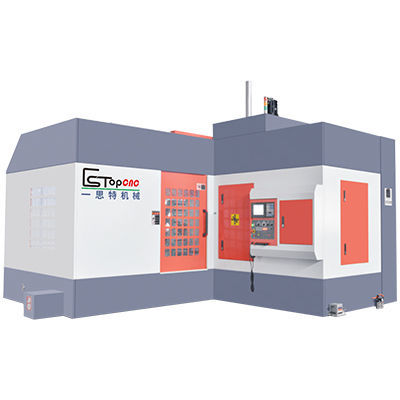

3-axis machining center HMC-2214NChorizontalBT 50milling
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Spindle mount
- BT 50
- Associated functions
- milling
- Applications
- for large workpieces
- X travel
2,350 mm
(92.52 in)- Y travel
1,400 mm
(55.12 in)- Z travel
650 mm
(25.59 in)- Rotational speed
Max.: 3,000 rpm
(18,850 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
30 kW, 37 kW
(40.79 hp, 50.31 hp)- Table load capacity
12,000 kg
(26,455 lb)- Weight
26 t
(28.66 us ton)- Overall length
6,370 mm
(250.8 in)- Overall width
4,400 mm
(173.2 in)- Overall height
3,570 mm
(140.6 in)
Description
Product
Horizontal machining center HMC-2214NC for large workpieces and high-load machining applications. Key features include a 2200×1400 mm work table, 650 mm vertical table travel and selectable spindle transmission (belt or gear).
Technical parameters (comparison)
Technical specifications
Horizontal machining center HMC-2214NC for large workpieces and high-load machining applications. Key features include a 2200×1400 mm work table, 650 mm vertical table travel and selectable spindle transmission (belt or gear).
Technical parameters (comparison)
- Model: ET-1712-NC | ET-2214-NC
- Max. travel (X/Y/Z) (mm): 1800/1200/500 | 2350/1400/650
- Vertical table travel (W axis) (mm): 500 | 650
- Work table size (L×W) (mm): 1700×1100 | 2200×1400
- Spindle center to table (mm): 50–1250 | 50–1450
- Vertical table travel size (L×H) (mm): 1840×900 | 2340×1100
- Feed rate X/Y/Z (mm/min): 10–7500 / 10–7500 / 10–4500
- Spindle diameter (mm): 220 (split type spindle) | 220 (split type spindle)
- Spindle power (kW): 30/37 | 30/37
- Spindle speed (r/min): 0–3000 (belt type) / 0–1800 (gear type) | 0–3000 (belt type) / 0–1800 (gear type)
- Spindle taper: BT-50
- Approx. axis drive power (kW): X 4 | 5, Y 4, Z 3
- Total power (kW): 48 | 55
- Max. load bearing (t): 8 | 12
- Weight (t) ±5%: 23 | 26
- Overall dimension (L×W×H) (mm): 4950×3900×4150 | 6370×4400×3750
- Optional: Spindle transmission mode selectable (belt type or gear type)
Technical specifications
- Model designation on page: HMC-2214NC
- Max. travel (X/Y/Z): 2350/1400/650 mm (ET-2214-NC)
- Vertical table travel (W axis): 650 mm
- Work table size (L×W): 2200×1400 mm
- Spindle center to table: 50–1450 mm
- Vertical table travel size (L×H): 2340×1100 mm
- Feed rates: X/Y = 10–7500 mm/min, Z = 10–4500 mm/min
- Spindle diameter: 220 mm (split type spindle)
- Spindle power: 30/37 kW
- Spindle speed: 0–3000 r/min (belt type) or 0–1800 r/min (gear type)
- Spindle taper: BT-50
- Approx. axis drive power: X ≈ 5 kW, Y ≈ 4 kW, Z ≈ 3 kW
- Total power: ≈ 55 kW
- Max. load bearing: 12 Ton
- Weight: ≈ 26 Ton (±5%)
- Overall dimensions (L×W×H): 6370×4400×3750 mm
- Optional: spindle transmission mode selectable (belt type or gear type)
