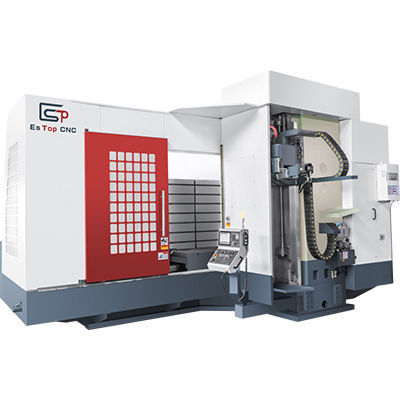

3-axis machining center HMC-2516NChorizontalBT 50milling
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Spindle mount
- BT 50
- Associated functions
- milling
- Applications
- for heavy loads
- X travel
2,500 mm
(98.43 in)- Y travel
1,600 mm
(62.99 in)- Z travel
550 mm
(21.65 in)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 3,000 rpm
(18,850 rad.min-1)- Power
30 kW
(40.79 hp)- Workpiece max height
Min.: 0 mm
(0 in)Max.: 1,600 mm
(63 in)- Table load capacity
12,000 kg
(26,455 lb)- Positioning accuracy
0.02 mm
(0.00079 in)- Repeatability
0.015 mm
(0.00059 in)- Weight
32,000 kg
(70,547.92 lb)- Overall length
7,500 mm
(295.3 in)- Overall width
4,800 mm
(189 in)- Overall height
4,300 mm
(169.3 in)
Description
Product overview
ES-TOP HMC-2516NC is a horizontal machining center engineered for rough milling and high-capacity part processing. It integrates a BT50 spindle with a 30 kW motor, a large 2500 × 1400 mm worktable and a high 12,000 kg loading capacity, suitable for heavy industrial machining.
Technical specifications (summary)
Machine main configuration
Standard accessories / items
Detailed specifications
ES-TOP HMC-2516NC is a horizontal machining center engineered for rough milling and high-capacity part processing. It integrates a BT50 spindle with a 30 kW motor, a large 2500 × 1400 mm worktable and a high 12,000 kg loading capacity, suitable for heavy industrial machining.
Technical specifications (summary)
- Model: HMC-2516NC
- Three-axis travel (X/Y/Z): 2500 / 1600 / 550 mm
- Spindle center to column guide: 0–1600 mm
- Cutting capacity: 800 cm³/min
- Worktable size: 2500 × 1400 mm
- Max loading weight: 12,000 kg
- Spindle speed: 0–3000 rpm
- Spindle taper: BT50-φ220
- Spindle motor: 30 kW
- Control system: Mitsubishi M80
Machine main configuration
- One unit Horizontal Machining Center (model HMC-2516NC) with Mitsubishi M80 controller
Standard accessories / items
- Handheld operating unit — 1 pc
- Automatic lubrication system — 1 pc
- LED warning light — 1 pc
- Spindle blowing device — 1 pc
- Air curtain protection — 1 pc
- Flashlight — 1 pc
- Attached accessories — 1 set
- Attached technical agreement — 1 set
Detailed specifications
- Model: HMC-2516NC
- Three axis travel (X/Y/Z): 2500 mm / 1600 mm / 550 mm
- Spindle center to column guide: 0–1600 mm
- Cutting capacity: 800 cm³/min
- Worktable size: 2500 × 1400 mm
- Max loading weight: 12,000 kg
- Spindle speed: 0–3000 rpm
- Spindle taper: BT50-φ220
- Spindle motor: 30 kW
- Rapid feeding (X/Y/Z): 6 / 6 / 6 m/min
- Rapid cutting feeding (X/Y/Z): 5 / 5 / 5 m/min
- Positioning accuracy: 0.02 mm
- Re-positioning accuracy: 0.015 mm
- Lubricating oil tank capacity: 4 L
- Machine dimensions: 7500 × 4800 × 4300 mm
- Machine weight: 32,000 kg
- Control system: Mitsubishi M80
