3-axis machining center HMC-1712NC

horizontaltable typeBT 50

Product

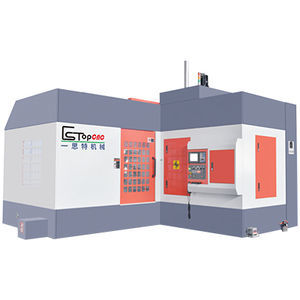

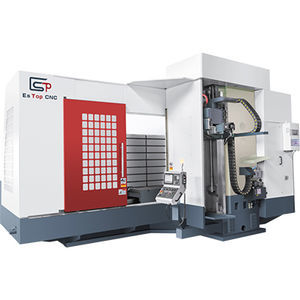

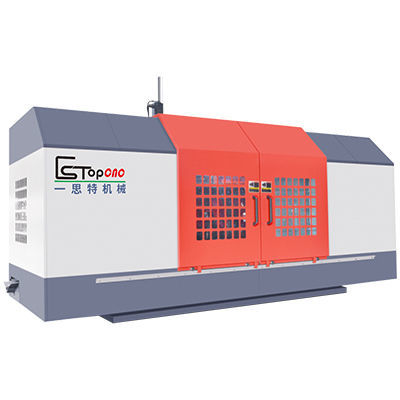

Horizontal machining center ET-1712-NC (commercial designation HMC-1712NC). Designed for horizontal milling and heavy-duty production machining of large parts.

Overview
Models presented on this page: ET-1712-NC and ET-2214-NC. Manufacturer: ES-TOP CNC. Available spindle transmission modes: belt type or gear type. Suitable for high load-bearing applications and large workpieces.

Technical specifications (summary)
Model: ET-1712-NC | ET-2214-NC
Max. travel (X/Y/Z axis) (mm): 1800/1200/500 | 2350/1400/650
Vertical table travel (W axis) (mm): 500 | 650
Work table size (L×W) (mm): 1700×1100 | 2200×1400
Spindle center to table (mm): 50-1250 | 50-1450
Vertical table travel size (L×H) (mm): 1840×900 | 2340×1100
Feed rate (mm/min): X 10–7500 | 10–7500; Y 10–7500 | 10–7500; Z 10–4500 | 10–4500
Milling head / Spindle:
Spindle diameter (mm): 220 (split type spindle)
Spindle power (kW): 30/37
Spindle speed (r/min): 0–3000 (belt type) / 0–1800 (gear type)
Spindle taper: BT-50
Axis drive approximate power (kW): X 4 | 5; Y 4; Z 3
Total power (approx. kW): 48 | 55
Max. load bearing: 8 Ton | 12 Ton
Weight (approx.): 23 Ton ±5% | 26 Ton ±5%
Dimension (L×W×H) (mm): 4950×3900×4150 | 6370×4400×3750
Optional: spindle transmission mode — belt type or gear type

Tags / Keywords
Horizontal machining center / HMC-1712NC / ET-1712-NC / BT-50 / 30 kW / 37 kW / large table / heavy load

Technical characteristics

• Model: ET-1712-NC (corresponding commercial designation HMC-1712NC)
• Max. travel (X/Y/Z axis): 1800 / 1200 / 500 mm
• Vertical table travel (W axis): 500 mm
• Work table size (L×W): 1700 × 1100 mm
• Spindle center to table: 50–1250 mm
• Vertical table travel size (L×H): 1840 × 900 mm
• X/Y/Z feed rates: X 10–7500 mm/min, Y 10–7500 mm/min, Z 10–4500 mm/min
• Spindle diameter: 220 mm (split type spindle)
• Spindle power: 30/37 kW
• Spindle speed: 0–3000 r/min (belt type) or 0–1800 r/min (gear type)
• Spindle taper: BT-50
• Axis drive approximate power: X 4 kW, Y 4 kW, Z 3 kW
• Total power (approx.): 48 kW
• Max. load bearing: 8 Ton
• Weight (approx.): 23 Ton ±5%
• Dimension (L×W×H): 4950 × 3900 × 4150 mm
• Optional spindle transmission: belt type or gear type
