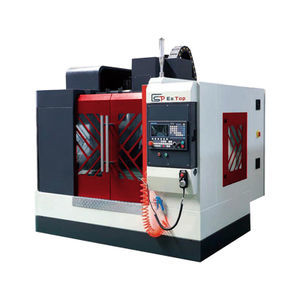

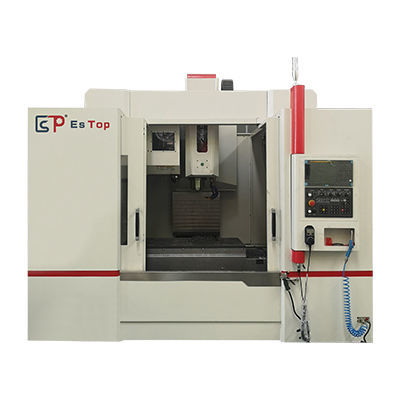

3-axis machining center VMC-1270NCverticalBT 4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools
- Associated functions
- milling, drilling, tapping
- Other characteristics
- high-speed, for production, wide
- X travel
1,200 mm
(47.24 in)- Y travel
700 mm
(27.56 in)- Z travel
670 mm
(26.38 in)- Rotational speed
10,000 rpm
(62,832 rad.min-1)- Power
11 kW, 15 kW
(14.96 hp, 20.39 hp)- Table load capacity
1,000 kg
(2,205 lb)- Tool weight (max)
7 kg
(15.4 lb)- Positioning accuracy
0.01 mm
(0.00039 in)- Repeatability
0.006 mm
(0.00024 in)- Tool-changing time
1.8 s
- Weight
8,800 kg
(19,400.68 lb)- Overall length
3,710 mm
(146.1 in)- Overall width
3,170 mm
(124.8 in)- Overall height
2,810 mm
(110.6 in)
Description
Overview
High-speed three-axis CNC vertical machining center for a wide range of milling, drilling and tapping operations. Suitable for production and flexible part processing with a large work table and high load capacity.
Standard Specification
Travel (X/Y/Z): 1200/700/670 mm
Distance spindle centre line to column guide surface: 827 mm
Spindle nose to work bench surface: 150–820 mm
Work bench size: 1400×700 mm
Max load on work bench: 1000 kg
T-slot: 5×18×150
Spindle speed: 10000 rpm
Spindle taper: BT40
Spindle motor power: 11/15 kW
Rapid moving (X/Y/Z): 30/30/30 m/min
Rapid feeding speed: 10/10/10 m/min
Tool magazine capacity: 24 tools
Tool max diameter/length/weight: Ø75 mm / 300 mm / 7 kg
Tool max diameter (full/empty): 75/150 mm
Tool selection method: any/sequence
Tool change time: 1.8 s
Positioning accuracy (X/Y/Z): 0.010 mm
Re-positioning accuracy (X/Y/Z): 0.006 mm
Air requirement: 280 L/min at 6–8 bar
Total electrical capacity: 35 KVA
Water tank capacity: 420 L
Machine size (X×Y×Z): 3710×3170×2810 mm
Machine weight: 8800 kg
Machine Main configuration
1. Mitsubishi M80B CNC system — Quantity: 1
2. Handheld operating unit — Quantity: 1
3. Disc tool magazine (24 units) — Quantity: 1
4. Automatic lubrication system — Quantity: 1
5. LED warning light — Quantity: 1
6. Spindle blowing device — Quantity: 1
7. Air curtain protection — Quantity: 1
8. Flashlight — Quantity: 1
9. Attached accessories — Quantity: 1
Technical specifications
High-speed three-axis CNC vertical machining center for a wide range of milling, drilling and tapping operations. Suitable for production and flexible part processing with a large work table and high load capacity.
Standard Specification
Travel (X/Y/Z): 1200/700/670 mm
Distance spindle centre line to column guide surface: 827 mm
Spindle nose to work bench surface: 150–820 mm
Work bench size: 1400×700 mm
Max load on work bench: 1000 kg
T-slot: 5×18×150
Spindle speed: 10000 rpm
Spindle taper: BT40
Spindle motor power: 11/15 kW
Rapid moving (X/Y/Z): 30/30/30 m/min
Rapid feeding speed: 10/10/10 m/min
Tool magazine capacity: 24 tools
Tool max diameter/length/weight: Ø75 mm / 300 mm / 7 kg
Tool max diameter (full/empty): 75/150 mm
Tool selection method: any/sequence
Tool change time: 1.8 s
Positioning accuracy (X/Y/Z): 0.010 mm
Re-positioning accuracy (X/Y/Z): 0.006 mm
Air requirement: 280 L/min at 6–8 bar
Total electrical capacity: 35 KVA
Water tank capacity: 420 L
Machine size (X×Y×Z): 3710×3170×2810 mm
Machine weight: 8800 kg
Machine Main configuration
1. Mitsubishi M80B CNC system — Quantity: 1
2. Handheld operating unit — Quantity: 1
3. Disc tool magazine (24 units) — Quantity: 1
4. Automatic lubrication system — Quantity: 1
5. LED warning light — Quantity: 1
6. Spindle blowing device — Quantity: 1
7. Air curtain protection — Quantity: 1
8. Flashlight — Quantity: 1
9. Attached accessories — Quantity: 1
Technical specifications
- Model: VMC-1270NC
- Brand: ES-TOP CNC
- Three axis travel (X/Y/Z): 1200/700/670 mm
- Distance spindle centre line to column guide surface: 827 mm
- Spindle nose to work bench surface: 150–820 mm
- Work bench size: 1400×700 mm
- Max load on work bench: 1000 kg
- T-slot: 5×18×150
- Spindle speed: 10000 rpm
- Spindle taper: BT40
- Spindle motor power: 11/15 kW
- Rapid moving (X/Y/Z): 30/30/30 m/min
- Rapid feeding speed: 10/10/10 m/min
- Tool magazine capacity: 24 tools
- Tool max diameter/length/weight: Ø75 mm / 300 mm / 7 kg
- Tool max diameter (full/empty): 75/150 mm
- Tool change time: 1.8 s
- Positioning accuracy (X/Y/Z): 0.010 mm
- Re-positioning accuracy (X/Y/Z): 0.006 mm
- Air requirement: 280 L/min at 6–8 bar
- Total electrical capacity: 35 KVA
- Water tank capacity: 420 L
- Machine size (X×Y×Z): 3710×3170×2810 mm
- Machine weight: 8800 kg
