Product overview

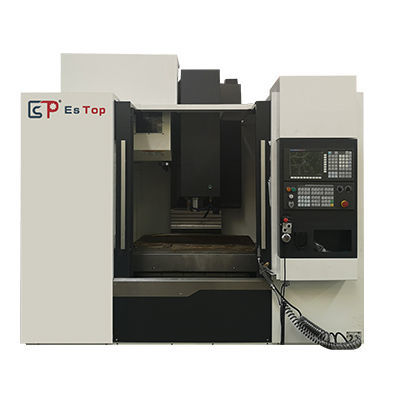

Vertical CNC machining center VMC-1165NC with X/Y/Z travels of 1100/650/600 mm, BT40 spindle up to 10,000 rpm and selectable spindle motor power 11 or 15 kW. Fitted with a 1200 × 600 mm worktable (max load 800 kg) and a 24-station disc tool magazine, the VMC-1165NC is configured for medium-to-large workpieces and series production requiring repeatable positioning and fast tool changes.

Key specifications

• Model: VMC-1165NC
• Travel (X / Y / Z): 1100 mm / 650 mm / 600 mm
• Distance spindle center to column guide: 745 mm
• Spindle nose to table: 125 ~ 725 mm
• Spindle speed: 10000 rpm
• Spindle taper: BT40
• Spindle motor power: 11 / 15 kW
• Table size: 1200 × 600 mm
• Max table load: 800 kg
• T-slots: 5 × 18 × 110 mm
• Tool magazine capacity: 24 tools (disc type)
• Tool max diameter/length/weight: Ø75 mm / 300 mm / 7 kg
• Tool max diameter (full/empty): 75 / 150 mm
• Tool change time: 1.8 s
• Rapid traverse (X/Y/Z): 30 / 30 / 30 m/min
• Feed speed (X/Y/Z): 10 / 10 / 10 m/min
• Positioning accuracy (X/Y/Z): 0.010 mm
• Re-positioning accuracy (X/Y/Z): 0.006 mm
• Air consumption / pressure: 280 L/min, 6~8 bar
• Total electrical capacity: 30 KVA
• Coolant tank capacity: 420 L
• Machine dimensions (L×W×H): 2900 × 3000 × 3000 mm
• Machine weight: 6700 kg

Main configuration

• Mitsubishi M80B CNC system — Quantity: 1
• Handheld operating unit — Quantity: 1
• Disc tool magazine (24 units) — Quantity: 1
• Automatic lubrication system — Quantity: 1
• LED warning light — Quantity: 1
• Spindle blowing device — Quantity: 1
• Air curtain protection — Quantity: 1
• Flashlight — Quantity: 1
• Attached accessories — Quantity: 1

Applications and operational notes

• Suitable for milling, drilling and tapping of medium-to-large components in automotive, mold, general engineering and industrial production.
• 24-tool disc magazine and 1.8 s tool change time reduce non-cutting time for series work.
• High rapid traverse (30 m/min) and stable spindle options support efficient roughing and finishing cycles.
• 420 L coolant tank and automatic lubrication simplify continuous operation and maintenance planning.
