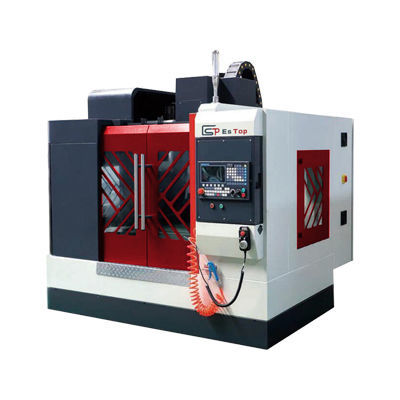

3-axis machining center VMC-1580NCGverticalBT 5024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 50
- Number of tool stations
- 24 tools
- Associated functions
- milling
- Applications
- for the automobile industry, for the aerospace industry, for molds
- X travel
1,500 mm
(59.06 in)- Y travel
800 mm
(31.5 in)- Z travel
700 mm
(27.56 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Power
25 kW
(33.99 hp)- Workpiece max height
Max.: 830 mm
(33 in)Min.: 130 mm
(5 in)- Table load capacity
2,000 kg
(4,409 lb)- Positioning accuracy
0.015 mm
(0.00059 in)- Repeatability
0.01 mm
(0.00039 in)- Weight
13,500 kg
(29,762.41 lb)- Overall length
4,800 mm
(189 in)- Overall width
3,500 mm
(137.8 in)- Overall height
3,300 mm
(129.9 in)
Description
Product overview
ES-TOP VMC-1580NCG is a high-torque vertical machining center (BT50 gearbox) for heavy milling and machining of large parts, offering a 1500×800×700 mm travel envelope and a maximum table load of 2000 kg.
Main technical parameters
Machine main configuration
Applications
ES-TOP VMC-1580NCG is a high-torque vertical machining center (BT50 gearbox) for heavy milling and machining of large parts, offering a 1500×800×700 mm travel envelope and a maximum table load of 2000 kg.
Main technical parameters
- Model: VMC-1580NC (Gear box) / VMC-1580NCG
- Travel (X/Y/Z): 1500 / 800 / 700 mm
- Spindle to table distance: 130–830 mm
- Worktable size: 1700 × 800 mm; T-slots: 5 × 18 × 135 mm
- Maximum table load: 2000 kg
- Spindle: BT50-Φ150; speed: 6000 rpm; gear transmission ratios low 1:3.6 / high 1:1.2
- Rapid feed X/Y/Z: 12 / 12 / 12 m/min; cutting feed: 1–10 m/min
- Motors: spindle 15/18.5 kW; three-axis servo X/Y/Z: 3.0 / 4.0 / 4.0 kW
- Positioning accuracy: ±0.015 mm; repeatability: ±0.01 mm
- Power requirement: 25 kW; compressed air requirement: 6–8 MPa
- Machine footprint (L×W×H): 4800 × 3500 × 3300 mm; weight: 13,500 kg
Machine main configuration
- Pendant handheld control unit: 1 pc
- Automatic lubrication system: 1 pc
- LED warning light: 1 pc
- Spindle air-blow device: 1 pc
- Air curtain protection: 1 pc
- Worklight/flashlight: 1 pc
- Attached accessories: 1 set
- Technical documentation: 1 set
- FANUC 0i-MF Plus(5) CNC: 1 pc
- Automatic tool changer (BT50-24T): 1 pc
Applications
- Heavy milling and machining of large components
- Die and mold manufacturing
- Automotive and aerospace structural parts
- General heavy-industry machining tasks

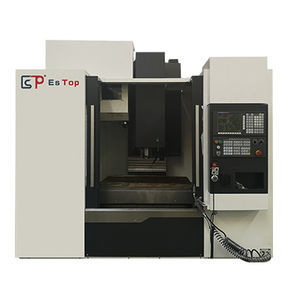

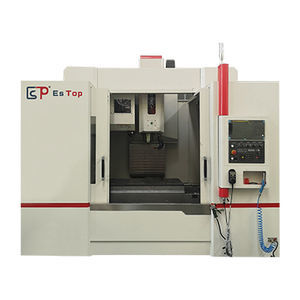

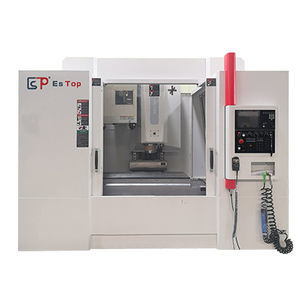

Other ESTOPCNC products
