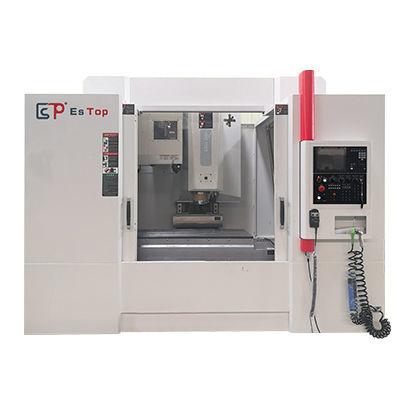

3-axis machining center VMC-1370NCverticalBT 4024 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools
- X travel
1,300 mm
(51.18 in)- Y travel
700 mm
(27.56 in)- Z travel
670 mm
(26.38 in)- Rotational speed
10,000 rpm
(62,832 rad.min-1)- Power
11 kW, 15 kW
(14.96 hp, 20.39 hp)- Table load capacity
1,000 kg
(2,205 lb)- Tool weight (max)
7 kg
(15.4 lb)- Positioning accuracy
0.01 mm
(0.00039 in)- Repeatability
0.006 mm
(0.00024 in)- Tool-changing time
1.8 s
- Weight
9,500 kg
(20,943.91 lb)- Overall length
3,820 mm
(150.4 in)- Overall width
3,170 mm
(124.8 in)- Overall height
2,800 mm
(110.2 in)
Description
Product overview
The VMC-1370NC is a CNC vertical machining center designed for large-format machining with three-axis travels of 1300/700/670 mm. It features a BT40 spindle up to 10000 rpm, a 1400×700 mm workbench with 1000 kg maximum load and a 24-position disc tool magazine.
Technical specifications
Main configuration
Notes
The VMC-1370NC is a CNC vertical machining center designed for large-format machining with three-axis travels of 1300/700/670 mm. It features a BT40 spindle up to 10000 rpm, a 1400×700 mm workbench with 1000 kg maximum load and a 24-position disc tool magazine.
Technical specifications
- Three-axis travel (X/Y/Z): 1300 / 700 / 670 mm
- Distance spindle center to column guide surface: 827 mm
- Spindle nose to work bench: 150–820 mm
- Work bench size: 1400 × 700 mm
- Max load on work bench: 1000 kg
- T-slots: 5 × 18 × 150
- Spindle speed: 10000 rpm
- Spindle taper: BT40
- Spindle motor power: 11 / 15 kW
- Rapid moving speed (X/Y/Z): 30 / 30 / 30 m/min
- Rapid feeding speed: 10 / 10 / 10 m/min
- Tool magazine capacity: 24 tools
- Tool max diameter/length/weight: Ø75 mm / 300 mm / 7 kg
- Tool max diameter (full/empty): 75 / 150 mm
- Tool change time: 1.8 s
- Positioning accuracy (X/Y/Z): 0.01 mm
- Re-positioning accuracy (X/Y/Z): 0.006 mm
- Air source: 280 L/min at 6–8 bar
- Total electrical capacity: 35 KVA
- Coolant tank capacity: 430 L
- Machine dimensions (X×Y×Z): 3820 × 3170 × 2800 mm
- Machine weight: 9500 kg
Main configuration
- Mitsubishi M80B CNC system
- Handheld operating unit
- Disc tool magazine (24 units)
- Automatic lubrication system
- LED warning light
- Spindle blowing device
- Air curtain protection
- Flashlight
- Attached accessories
Notes
- Total electrical capacity: 35 KVA; coolant tank: 430 L; machine weight and dimensions as listed
- Tool selection: any/sequence. Tool change time: 1.8 s.
- Options and custom configurations available on request
