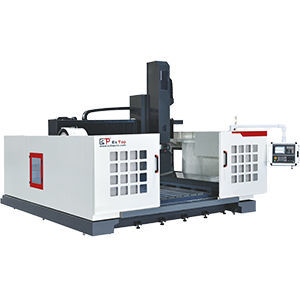

3-axis machining center ETH40 series
verticalfor aluminumfor non-ferrous metals

3-axis machining center - ETH40 series - ESTOPCNC - vertical / for aluminum / for non-ferrous metals
3-axis machining center - ETH40 series - ESTOPCNC - vertical / for aluminum / for non-ferrous metals
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Machined material
for aluminum, for non-ferrous metals
Structure
table type
Spindle mount
BT 40
Number of tool stations
24 tools
Associated functions
milling, drilling, tapping
X travel

2,500 mm, 3,000 mm
(98.43 in, 118.11 in)

Y travel

1,800 mm, 2,000 mm
(70.87 in, 78.74 in)

Z travel

600 mm, 800 mm
(23.62 in, 31.5 in)

Rotational speed

12,000 rpm
(75,398 rad.min-1)

Power

7.5 kW, 11 kW
(10.2 hp, 14.96 hp)

Positioning accuracy

0.02 mm, 0.05 mm
(0.00079 in, 0.00197 in)

Repeatability

0.01 mm
(0.00039 in)

Tool-changing time

2 s

Weight

12,000 kg, 16,000 kg
(26,455.47 lb, 35,273.96 lb)

Overall length

4,800 mm, 6,100 mm
(189 in, 240.2 in)

Overall width

4,300 mm, 5,100 mm
(169.3 in, 200.8 in)

Overall height

3,500 mm, 3,700 mm
(137.8 in, 145.7 in)

Description

Product
Profile compound machining center designed for precise processing of aluminium and non-ferrous profiles for windows, doors and industrial frames. Modular ETH40 series available in two table configurations (2518NC / 3020NC) with multiple X/Y/Z stroke options. SIEMENS CNC enables programmable multi-axis drilling, milling and finishing operations.

Technical specifications (table)
Model: ETH40-2518NC / ETH40-3020NC
X-axis stroke: 3000 mm / 2500 mm
Y-axis travel: 2000 mm / 1800 mm
Z-axis stroke: 800 mm / 600 mm
Spindle speed: 12000 rpm
Spindle taper / outer diameter: BT40 Φ150 mm / BT40 Φ120 mm
Tool magazine: disc type, 24 tools
Tool change time: 2 s
Rapid traverse X/Y/Z: 40 m/min / 50 m/min / 20 m/min
Cutting feed (X/Y/Z): 15000 mm/min
Control: SIEMENS
Spindle motor: 11 kW / 7.5 kW
Axis motors (X/Y/Z): (3.14+3.14) kW / 3.14 kW / 3.14 kW
Lubrication: automatic lubrication
Cooling: water spray cooling
Positioning accuracy X: 0.05 mm; Y/Z: 0.02 mm; Repeatability: 0.01 mm
Compressed air: 0.6–0.9 MPa
Height: 3700 mm / 3500 mm
Footprint (approx.): 6100 × 4300 mm / 4800 × 5100 mm
Weight (approx.): 16000 kg / 12000 kg

Key features
  • ETH40 series family with two table length options
  • Multiple X/Y/Z stroke configurations to accommodate different profile sizes
  • 12000 rpm BT40 spindle with two outer-diameter options
  • 24-position disc tool magazine and 2 s tool change
  • High rapid traverse and cutting feed rates for production throughput
  • SIEMENS CNC control for flexible multi-axis programs
  • Choice of spindle motor power: 11 kW or 7.5 kW
  • Axis motor configuration: (3.14+3.14) / 3.14 / 3.14 kW
  • Automatic lubrication and water spray cooling
  • Precision positioning and high repeatability
  • Compressed air requirement: 0.6–0.9 MPa
  • Footprint and weight variants to match production layouts
