3-axis machining center ETV20/V25
verticalBT 4024 tools

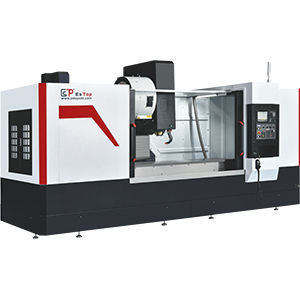

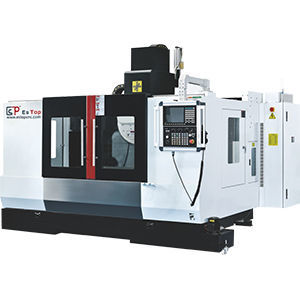

3-axis machining center - ETV20/V25 - ESTOPCNC - vertical / BT 40 / 24 tools
3-axis machining center - ETV20/V25 - ESTOPCNC - vertical / BT 40 / 24 tools
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Spindle mount
BT 40
Number of tool stations
24 tools
Applications
for profiles
Other characteristics
disc
X travel

2,000 mm, 2,500 mm
(78.74 in, 98.43 in)

Y travel

600 mm, 700 mm
(23.62 in, 27.56 in)

Z travel

600 mm
(23.62 in)

Rotational speed

12,000 rpm
(75,398 rad.min-1)

Power

7.5 kW, 11 kW
(10.2 hp, 14.96 hp)

Positioning accuracy

0.02 mm, 0.03 mm
(0.00079 in, 0.00118 in)

Repeatability

0.01 mm
(0.00039 in)

Tool-changing time

2 s

Weight

7,000 kg, 10,000 kg
(15,432.36 lb, 22,046.23 lb)

Overall length

6,000 mm
(236.2 in)

Overall width

2,300 mm
(90.6 in)

Overall height

3,000 mm
(118.1 in)

Description

Overview

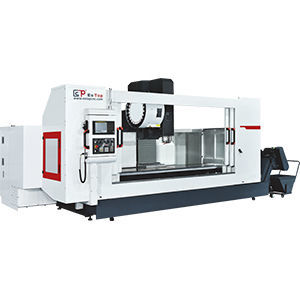

Profile compound machining center

Main specifications (table)
X-axis stroke: 2000mm/2500mm
Y-axis travel: 600mm/650mm/700mm
Z-axis stroke: 600mm
Spindle speed: 12000rpm
Spindle taper hole: BT40 φ140mm (outer diameter)
Tool magazine form: Disc type
Magazine capacity: 24 pcs
Tool change time: 2 sec
X-axis movement: 48 m/min
Y-axis movement: 48 m/min
Z-axis movement: 48 m/min
Cutting feed speed X/Y/Z: 15000 mm/min
Operating system: FANUC / MITSUBISHI
Spindle motor: 7.5 KW / 11 KW
X/Y/Z axis motor: 3.0 KW / 3.0 KW / 3.0 KW
Lubrication system: Automatic lubrication
Cooling system: Water spray cooling
X axis positioning accuracy: 0.03mm
Y/Z axis positioning accuracy: 0.02mm
Repetitive positioning accuracy: 0.01mm
Barometric demand: 0.6 Mpa - 0.9 Mpa
Height: 3000mm
Area covered: 6000*2300mm
Weight: approx 7000 KG / approx 10000 KG

Notes
Disc type tool magazine; 24-tool capacity; fast tool change (2 sec); available with FANUC or MITSUBISHI controls; spindle options and motor powers as listed above.

Technical specifications
  • X-axis stroke: 2000mm/2500mm
  • Y-axis travel: 600mm/650mm/700mm
  • Z-axis stroke: 600mm
  • Spindle speed: 12000rpm
  • Spindle taper hole: BT40 φ140mm (outer diameter)
  • Tool magazine form: Disc type
  • Magazine capacity: 24 pcs
  • Tool change time: 2 sec
  • X/Y/Z axis movement speed: 48 m/min
  • Cutting feed speed X/Y/Z: 15000 mm/min
  • Operating system: FANUC / MITSUBISHI
  • Spindle motor: 7.5 KW / 11 KW
  • X/Y/Z axis motor: 3.0 KW / 3.0 KW / 3.0 KW
  • Lubrication system: Automatic lubrication
  • Cooling system: Water spray cooling
  • X axis positioning accuracy: 0.03mm
  • Y/Z axis positioning accuracy: 0.02mm
  • Repetitive positioning accuracy: 0.01mm
  • Barometric demand: 0.6 Mpa - 0.9 Mpa
  • Height: 3000mm
  • Area covered: 6000*2300mm
  • Weight: approx 7000 KG / approx 10000 KG
