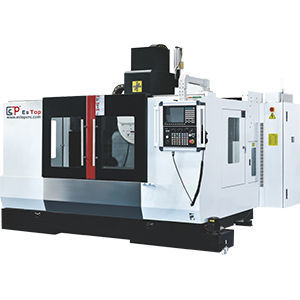

3-axis machining center ETJ30-2012NC

verticalfor aluminumfor light alloys

Product overview
The ETJ30-2012NC profile compound machining center is designed for precision machining of extruded profiles. It integrates long X/Y travels, a high-speed spindle and an indexed tool magazine to perform drilling, milling and contouring operations for serial industrial production.

Main technical data

• Model designation: ej30-2012 (ETJ30-2012NC)
• X-axis stroke: 2000 mm
• Y-axis stroke: 1200 mm
• Z-axis stroke: 500 mm
• Spindle speed: 20,000 rpm
• Spindle taper hole: BT30 φ100 mm (outer diameter)
• Tool magazine form: Flying saucer
• Magazine capacity: 16 pcs
• Tool change time: 2 sec
• X/Y/Z axis rapid movement: 30 m/min
• Cutting feed speed X/Y/Z: 20,000 mm/min
• Control / Operating system: SYNTEC

Drive, motors and systems

• Spindle motor: 5.5 kW
• X/Y/Z axis motors: 1.8 / 3.0 / 1.8 kW
• Lubrication system: Automatic lubrication
• Cooling system: Water spray cooling

Accuracy and performance

• X axis positioning accuracy: 0.02 mm
• Y/Z axis positioning accuracy: 0.02 mm
• Repetitive positioning accuracy: 0.01 mm
• Suitable for high-speed contouring and repeated profile operations

Installation and utilities

• Air pressure requirement: 0.6 MPa – 0.9 MPa
• Overall height: 2800 mm
• Area footprint: 3500 × 2800 mm
• Weight: approx. 9500 kg

Typical applications

• Machining of aluminum and light-alloy extruded profiles
• Window and door frames, curtain wall profiles, structural profiles
• Serial production and batch manufacturing of bespoke profiles

Options and customization

• Additional tooling and fixtures on request
• Automation interfaces, loading/unloading systems and uprated control packages available as options
