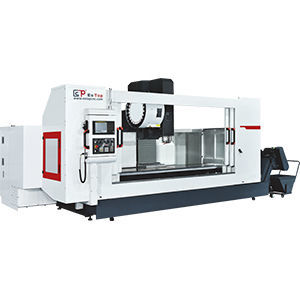

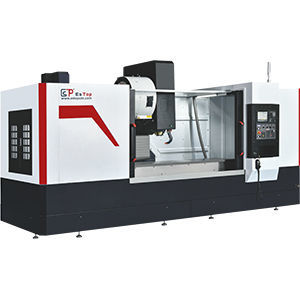

3-axis machining center ETH40-2500NCverticalfor aluminumBT 40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum
- Spindle mount
- BT 40
- Number of tool stations
- 24 tools
- Associated functions
- milling, drilling, tapping
- Other characteristics
- disc
- X travel
2,500 mm
(98.43 in)- Y travel
500 mm
(19.69 in)- Z travel
500 mm, 700 mm
(19.69 in, 27.56 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
7.5 kW
(10.2 hp)- Work feed X-axis
250 mm/s
- Work feed Y-axis
250 mm/s
- Work feed Z-axis
0.25 m/s
(0.82 ft/s)- Positioning accuracy
0.02 mm, 0.05 mm
(0.00079 in, 0.00197 in)- Repeatability
0.01 mm
(0.00039 in)- Tool-changing time
2 s
- Weight
6,000 kg
(13,227.74 lb)- Overall length
4,800 mm
(189 in)- Overall width
2,500 mm
(98.4 in)- Overall height
2,750 mm
(108.3 in)
Description
Product overview
The ETH40-2500NC is a profile compound machining center designed for precision machining of profiles and structural components. Available with Z-axis stroke options 500 mm or 700 mm, it supports milling, drilling and tapping operations for production environments.
Technical table
Model: ETH40-2500NC
X-axis stroke: 2500 mm
Y-axis travel: 500 mm
Z-axis stroke: 500 mm / 700 mm
Spindle speed: 12,000 rpm
Spindle taper hole: BT40, ⌀120 mm (outer diameter)
Tool magazine form: Disc type
Magazine capacity: 24 pcs
Tool change time: 2 s
X-axis rapid movement: 60 m/min
Y-axis rapid movement: 28 m/min
Z-axis rapid movement: 28 m/min
Cutting feed speed (X/Y/Z): 15,000 mm/min
Control system: FANUC / MITSUBISHI
Spindle motor: 7.5 kW
X/Y/Z axis motors: 3.0 / 3.0 / 3.0 kW
Lubrication: Automatic lubrication
Cooling: Water spray cooling
X axis positioning accuracy: 0.05 mm
Y/Z axis positioning accuracy: 0.02 mm
Repetitive positioning accuracy: 0.01 mm
Compressed air requirement: 0.6–0.9 MPa
Overall height: 2750 mm
Footprint (area covered): 4800 mm x 2500 mm
Approximate weight: 6000 kg
Key specifications
Applications
Suitable for profile machining in industrial production: aluminium and metal extrusions, window and door frames, railings, structural profiles and other profile-based components.
Options and control
Control options: FANUC or MITSUBISHI. Z-axis stroke configurable (500 mm or 700 mm). Disc-type 24-position tool magazine. Automatic lubrication and water spray cooling included.
The ETH40-2500NC is a profile compound machining center designed for precision machining of profiles and structural components. Available with Z-axis stroke options 500 mm or 700 mm, it supports milling, drilling and tapping operations for production environments.
Technical table
Model: ETH40-2500NC
X-axis stroke: 2500 mm
Y-axis travel: 500 mm
Z-axis stroke: 500 mm / 700 mm
Spindle speed: 12,000 rpm
Spindle taper hole: BT40, ⌀120 mm (outer diameter)
Tool magazine form: Disc type
Magazine capacity: 24 pcs
Tool change time: 2 s
X-axis rapid movement: 60 m/min
Y-axis rapid movement: 28 m/min
Z-axis rapid movement: 28 m/min
Cutting feed speed (X/Y/Z): 15,000 mm/min
Control system: FANUC / MITSUBISHI
Spindle motor: 7.5 kW
X/Y/Z axis motors: 3.0 / 3.0 / 3.0 kW
Lubrication: Automatic lubrication
Cooling: Water spray cooling
X axis positioning accuracy: 0.05 mm
Y/Z axis positioning accuracy: 0.02 mm
Repetitive positioning accuracy: 0.01 mm
Compressed air requirement: 0.6–0.9 MPa
Overall height: 2750 mm
Footprint (area covered): 4800 mm x 2500 mm
Approximate weight: 6000 kg
Key specifications
- Model: ETH40-2500NC
- X-axis stroke: 2500 mm
- Y-axis travel: 500 mm
- Z-axis stroke: 500 mm or 700 mm
- Spindle speed: 12,000 rpm
- Spindle taper: BT40, outer diameter 120 mm
- Tool magazine form: Disc type
- Magazine capacity: 24 pcs
- Tool change time: 2 s
- X-axis rapid movement: 60 m/min
- Y-axis rapid movement: 28 m/min
- Z-axis rapid movement: 28 m/min
- Cutting feed speed (X/Y/Z): 15,000 mm/min
- Control system: FANUC or MITSUBISHI
- Spindle motor power: 7.5 kW
- X/Y/Z axis motors: 3.0 / 3.0 / 3.0 kW
- Lubrication: Automatic
- Cooling: Water spray
- X axis positioning accuracy: 0.05 mm
- Y/Z axis positioning accuracy: 0.02 mm
- Repetitive positioning accuracy: 0.01 mm
- Compressed air: 0.6–0.9 MPa
- Overall height: 2750 mm
- Footprint: 4800 mm x 2500 mm
- Approx. weight: 6000 kg
Applications
Suitable for profile machining in industrial production: aluminium and metal extrusions, window and door frames, railings, structural profiles and other profile-based components.
Options and control
Control options: FANUC or MITSUBISHI. Z-axis stroke configurable (500 mm or 700 mm). Disc-type 24-position tool magazine. Automatic lubrication and water spray cooling included.
