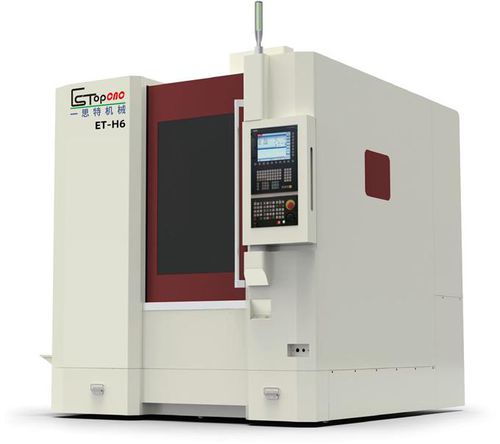

3-axis machining center ET-H6verticalHSK-E4020 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- HSK-E40
- Number of tool stations
- 20 tools
- Associated functions
- milling
- Other characteristics
- high-speed, high-rigidity
- X travel
600 mm
(23.62 in)- Y travel
500 mm
(19.69 in)- Z travel
350 mm
(13.78 in)- Rotational speed
30,000 rpm
(188,496 rad.min-1)- Power
11 kW
(14.96 hp)- Work feed X-axis
12 m/min
- Work feed Y-axis
12 m/min
- Work feed Z-axis
12 m/min
- Table load capacity
400 kg
(882 lb)- Positioning accuracy
0.0025 mm
(0.0001 in)- Repeatability
0.0015 mm
(0.00006 in)- Weight
6,500 kg
(14,330.05 lb)- Overall length
2,200 mm
(86.6 in)- Overall width
2,390 mm
(94.1 in)- Overall height
2,500 mm
(98.4 in)
Description
Product
ET-H6 high-rigidity, high-speed CNC machining center for precision milling and finishing of metal components. Model ET-H6 features HSK E40 spindle, 20-tool ATC and a compact footprint for industrial production.
Main technical parameters
Main components of the machine tools & Standard annex
Standard accessories
Typical applications
ET-H6 high-rigidity, high-speed CNC machining center for precision milling and finishing of metal components. Model ET-H6 features HSK E40 spindle, 20-tool ATC and a compact footprint for industrial production.
Main technical parameters
- Model: ET-H6
- Travel (X / Y / Z): 600 / 500 / 350 mm
- Distance spindle end to work surface: 120–470 mm
- Gate width: 780 mm — Max height: 395 mm
- Linear rails (X/Y/Z): INA 45 / 45 / 3590 mm
- Ball screws (X/Y/Z): NSK 4010
- Worktable dimension: 660 × 500 mm — T-slot: 6-18/100
- Table max load: 400 kg
- Spindle type: HSK E40 (Inner Tibet electric spindle)
- Max spindle speed: 30,000 rpm (option 42,000 rpm)
- Spindle motor: 11 kW
- Automatic tool changer (ATC): 20T
- Rapid feed (X/Y/Z): 30 m/min — Cutting feed: 12 m/min
- Positioning accuracy: ±0.0025 mm — Repeatability: ±0.0015 mm
- Machine weight (approx.): 6,500 kg
- Power supply: 380V / 50Hz, 20 KVA
- Air pressure: 6–8 bar
- Outline dimension (L × W × H): 2200 × 2390 × 2500 mm
- Tool measuring system: Renishaw — Linear scales: HEIDENHAIN
Main components of the machine tools & Standard annex
- Numerical control system: Siemens 828D
- Three-axis ball screw: Japan NSK
- Three-axis linear rail: Germany INA
- Spindle components: DM
- Ball screw bearing: Japan NSK
- Clutch: Germany R + W (bellows type)
- Main contactor: Schneider of France
- Main pneumatic elements: Japan SMC
- Source: Taiwan Ming wei
- Main wire: Taiwan Xinguang (oil prevention)
- Lathe bed: DM
- Expansion protective cover: Taiwan-funded
- Tool measuring system: Renishaw
- Linear scales (LS187C-1540-840-740): HEIDENHAIN
Standard accessories
- Spindle blowing system — 1 set
- Tools cooling system — 1 set
- Full cover protective cover — 1 set
- Automatic lubrication system — 1 set
- Work light — 1 set
- Adjustment cushion blocks and bolts — 1 set
- Cast box — 1 set
- Water tank — 1 set
- Tools box — 1 set
- Tool holder + pulling nail — 1 set
- Lock tool seat — 1 set
Typical applications
- Precision components for mold & die making
- Automotive and transmission parts
- Aerospace components requiring high spindle speed and accuracy
- General industrial parts finishing and small-batch production
