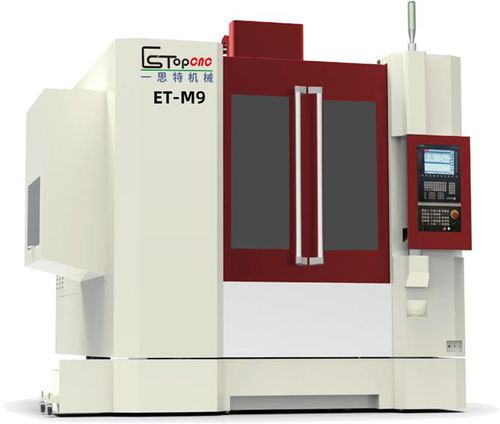

3-axis machining center ET-M9

verticalBT 4024 tools

Product name
EsTop Machining center M9 economical style

Main technical parameters
Type: M9
Travel - X axis (mm): 900
Travel - Y axis (mm): 600
Travel - Z axis (mm): 425
Distance from spindle end surface to working surface (mm): 195-620
Gate width (mm): 1000
Max height (mm): 450
Line rail specifications (X/Y/Z, mm): 45/45/45
Ball screw specifications (X/Y/Z, mm): 4010
Worktable dimension (mm): 940*600
T-slot: 6-18/100
Table max loading capacity (kg): 700
Spindle (standard configuration): BT-40
Spindle speed (rpm): 15000
Spindle motor (kW): 9
ATC: 24T (Option; not installed as standard for M9)
X/Y/Z axis fast speed (m/min): 30
X/Y/Z axis feed speed (m/min): 12
Positioning accuracy (mm/mm): ±0.0025
Repeat positioning accuracy (mm/mm): ±0.0015
Machine weight (approx., Kg): 8500
Power supply capacity (380V / 50 HZ, KVA): 30
Air Pressure (bar): 6-8
Outline dimension (L*W*H, mm): 2600*2550*2800

Main components of the machine tools & Standard annex

• Numerical control system: Simens 828D
• Three axis Ball screw: Japan NSK
• Three axis Line rail: Germany INA
• Spindle components: DM
• Ball screw bearing: Japan NSK
• Clutch: Germany R + W (bellows type)
• Main contactor: Schneider of France
• Main pneumatic elements: Japan SMC
• Source: Taiwan Ming wei
• Main wire: Taiwan Xinguang - oil prevention hotline
• Lathe bed: DM
• Expansion protective cover: Taiwan-funded

Notes
Compared with H9, M9 is the economical style without item 13 and item 14. A 24-tools ATC is optional and is not installed on M9 by default.

Accessories / Standard attachments (Quantity)

• Spindle blowing system: 1 set
• Tools cooling system: 1 set
• Full cover protective cover: 1 set
• Automatic lubrication system: 1 set
• Work light: 1 set
• Adjust the cushion blocks and the bolts: 1 set
• Cast box: 1 set
• Water tank: 1 set
• Tools box: 1 set
• Tool holder + pulling nail: 1 set
• Lock tool seat: 1 set

Technical specifications

• Model: M9
• Travel (X/Y/Z): 900 / 600 / 425 mm
• Spindle type: BT-40
• Spindle speed: 15,000 rpm
• Spindle motor: 9 kW
• Worktable: 940 x 600 mm
• Table max load: 700 kg
• Positioning accuracy: ±0.0025 mm
• Repeatability: ±0.0015 mm
• Machine weight (approx.): 8,500 Kg
• Power supply requirement: 380V / 50Hz, ~30 KVA
• Air pressure: 6-8 bar
• Outline dimension (L*W*H): 2600 x 2550 x 2800 mm
• Line rails (X/Y/Z): 45 / 45 / 45 mm
• Ball screws (X/Y/Z): 4010
• ATC: 24 tools (optional)
