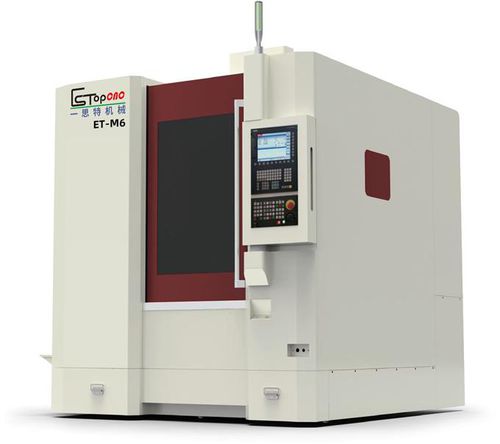

3-axis CNC machining center ET-M6

verticalwith fixed tableHSK-E40

Product
ET-M6 CNC high-speed machining center with hard-roughing capability, designed for precision milling and dynamic finishing of small to medium workpieces.

Main technical parameters
Type: M6
Travel: X axis: 600 mm
Travel: Y axis: 500 mm
Travel: Z axis: 350 mm
Distance from spindle end surface to working surface: 120-470 mm
Gate width: 780 mm
Max height: 395 mm
Line rail specifications: X/Y/Z: 45/45/35 (INA)
Ball screw specifications: X/Y/Z: 4010 (NSK)
Worktable dimension: 660 x 500 mm
T-slot: 6-18/100
Table max loading capacity: 400 kg
Spindle / ATC (standard configuration): Spindle: HSK E40 (Inner Tibet electric spindle)
Spindle speed: 30000 rpm (Option 42000 rpm)
Spindle motor: 11 kW
ATC: 20T (Option)
Feed - X / Y / Z axis fast speed: 30 m/min
Feed speed - X / Y / Z axis: 12 m/min
Positioning accuracy: ±0.0025 mm/mm
Repeat positioning accuracy: ±0.0015 mm/mm
Machine weight (approx.): 6500 Kg
Power supply capacity (380V / 50 HZ): 20 KVA
Air Pressure: 6-8 bar
Outline dimension (L x W x H): 2200 x 2390 x 2500 mm

Main components of the machine tools & Standard annex

• Numerical control system: Siemens 828D
• Three axis Ball screw: Japan NSK
• Three axis Line rail: Germany INA
• Spindle components: DM
• Ball screw bearing: Japan NSK
• Clutch: Germany R + W (bellows type)
• Main contactor: Schneider (France)
• Main pneumatic elements: Japan SMC
• Source: Taiwan Ming wei
• Main wire: Taiwan Xinguang (oil prevention)
• Lathe bed: DM
• Expansion protective cover: Taiwan-funded

Standard accessories (included items)

• Spindle blowing system: 1 set
• Tools cooling system: 1 set
• Full cover protective cover: 1 set
• Automatic lubrication system: 1 set
• Work light: 1 set
• Adjust the cushion blocks and the bolts: 1 set
• Cast box: 1 set
• Water tank: 1 set
• Tools box: 1 set
• Tool holder + pulling nail: 1 set
• Lock tool seat: 1 set

Notes
Compared with H6, M6 is an economical style without items 13 & 14; 20-tools ATC is an optional configuration and may not be installed on this model.

Caractéristiques / spécifications techniques

• Model: ET-M6
• Travel (X/Y/Z): 600 / 500 / 350 mm
• Spindle interface: HSK E40
• Spindle speed: 30000 rpm (option 42000 rpm)
• Spindle motor power: 11 kW
• Table size: 660 x 500 mm
• Max table load: 400 kg
• Positioning accuracy: ±0.0025 mm/mm
• Repeatability: ±0.0015 mm/mm
• Machine weight: ~6500 Kg
• Power requirement: 380V / 50Hz, 20 KVA
• Working air pressure: 6-8 bar
• Outline dimensions (L x W x H): 2200 x 2390 x 2500 mm
