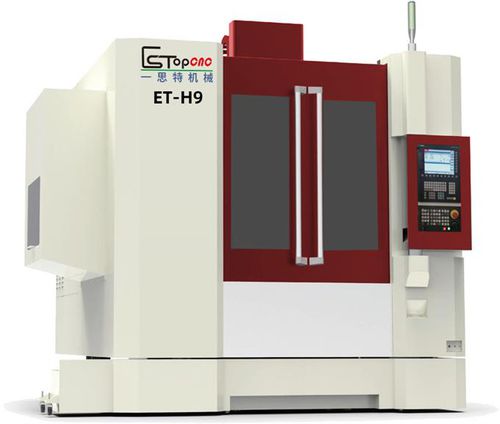

3-axis CNC milling machine ET-H9

verticalHSK A-6324 tools

Product overview
EsTop H9 is a 3-axis high-speed CNC machining center for milling, drilling and finishing of medium-sized workpieces. It features a 900×600×425 mm travel, HSK A63 spindle (20,000 rpm) with a 20 kW spindle motor and a 24-position automatic tool changer (ATC). The machine integrates industrial-grade components for repeatable precision and high throughput.

Main technical parameters

• Model: H9
• Travel (X/Y/Z): 900 / 600 / 425 mm
• Spindle to table distance: 195–620 mm
• Gate width: 1000 mm
• Max workpiece height: 450 mm
• Worktable dimension: 940 × 600 mm
• T-slot: 6-18/100
• Table max load: 700 kg
• Linear guide (X/Y/Z): 45 / 45 / 45 mm
• Ball screw (X/Y/Z): 4010 mm
• Spindle interface/type: HSK A63 (Inner Tibet electric spindle)
• Spindle speed: 20,000 rpm
• Spindle motor: 20 kW
• ATC: 24 tools
• Rapid traverse (X/Y/Z): 30 m/min
• Feed speed (X/Y/Z): 12 m/min
• Positioning accuracy: ±0.0025 mm/mm
• Repeatability: ±0.0015 mm
• Machine weight (approx.): 8,500 kg
• Power supply: 30 KVA (380V / 50 Hz)
• Required air pressure: 6–8 bar
• Outline dimension (L×W×H): 2600 × 2550 × 2800 mm

Main components of the machine tools & Standard annex

• Numerical control system: Siemens 828D
• Three-axis ball screw: Japan NSK
• Three-axis linear rail: Germany INA
• Spindle components: DM
• Ball screw bearing: Japan NSK
• Clutch: Germany R+W (bellows type)
• Main contactor: Schneider (France)
• Main pneumatic elements: Japan SMC
• Source: Taiwan Ming wei
• Main wire: Taiwan Xinguang (oil prevention hotline)
• Lathe bed: DM
• Expansion protective cover: Taiwan-funded
• Tool measuring system: Renishaw
• Linear scales (LS187C-1540-840-740): HEIDENHAIN

Standard accessories / supplied items

• Spindle blowing system: 1 set
• Tool cooling system: 1 set
• Full protective cover: 1 set
• Automatic lubrication system: 1 set
• Work light: 1 set
• Adjustment cushions and bolts: 1 set
• Cast box: 1 set
• Water tank: 1 set
• Tool box: 1 set
• Tool holder + pull stud: 1 set
• Tool clamping seat lock: 1 set

Key specifications

• Control system: Siemens 828D
• Spindle: HSK A63, 20,000 rpm, 20 kW
• Tool magazine: 24 tools
• Travels (X/Y/Z): 900 / 600 / 425 mm
• Table size: 940 × 600 mm, max load 700 kg
• Accuracy: positioning ±0.0025 mm/mm, repeatability ±0.0015 mm
• Power: 30 KVA (380V / 50 Hz)
• Required air: 6–8 bar
• Overall dimensions: 2600 × 2550 × 2800 mm
