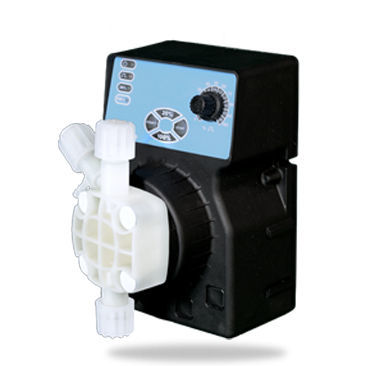

Acid pump DLX MA/AD seriessolenoid-drivendiaphragmstationary
Add to favorites
Compare this product
Characteristics
- Fluid
- acid
- Operation
- solenoid-driven
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- metering, dosing, control
- Material
- PTFE, plastic, PP, ceramic, PVDF
- Voltage
- 240 V, 120 V
- Protection level
- standard, IP65
- Other characteristics
- standard, double, sensor, wall
- Flow
Min.: 1 l/h
(0.26417 us gal/h)Max.: 20 l/h
(5.28344 us gal/h)- Pressure
Min.: 3 bar
(43.511 psi)Max.: 20 bar
(290.075 psi)- Power
37 W, 58 W
(0.05 hp, 0.08 hp)- Length
120 mm
(5 in)- Width
144 mm, 186 mm
(5.67 in, 7.32 in)- Height
213 mm, 221 mm
(8.39 in, 8.7 in)- Weight
2.3 kg, 2.9 kg
(5.07 lb, 6.39 lb)
Description
The high reliability and the price competitiveness make the DLX series the best proposal in
dosing systems market. On request, DLXB (foot mounted) series can be supplied with a stroke
length control, which enables - by a dial - to adjust the dosing volume between 20-100%.
The DLX MA/AD model consists of series of metering pumps enabling manual regulation by knob.
• Anti-acid plastic casing
• IP65 protection degree
• Wall (DLX) and Foot mounted (DLXB):
• Standard pump head: PP or PVDF body, PTFE diaphragm, ceramic balls, FPM sealings*
• Strokes frequency: 120 strokes/min (from 1l/h to 15l/h) - 150 strokes/m (20 l/h)
• CE (standard) and CSA certied (on request)
• Double Manual regulation by knob
• Selectable regulation range: 0-20% or 0-100%
• Level sensor input (on request)
