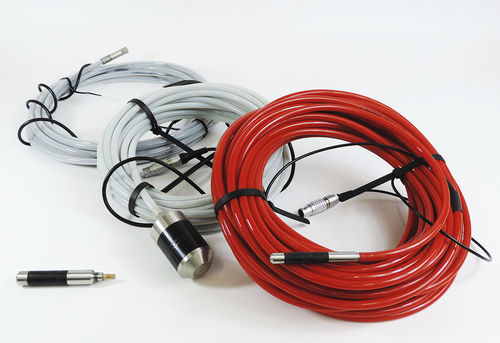

Test probe PID212L20R24keddy currentfor surface inspectionfor air conditioning systems
Add to favorites
Compare this product
Characteristics
- Type
- test
- Measured value
- eddy current
- Applications
- for surface inspection
- Domain
- for air conditioning systems, heat exchanger tube, petrochemical, for industrial applications
- Other characteristics
- rugged, handheld
Description
Differential ID Probes are for internal diameter tube inspection, ideal for inspecting non- ferrous tubular heat exchangers, condensers, air conditioning systems etc. ID Probes work with our dis-connectable cables; so if either the Probe or Cable fails, the operator can easily swap them for another and carry on with their inspection reducing interruption to their inspection and the cost of having to replace both the Probe and Cable.
* Probe diameters from 7.5 to 150mm, available in 0.1mm steps.
* Cable lengths from 3.0 to 30meters.
* Frequency range from 1.4kHz to 1.5MHz, centre frequencies 2.7, 10, 24, 76, 190, 400kHz.
* Cross axis and driver/pickup options also available on request.
* 3 Cable options - PVC Push / Pull (Rigid), Polyurethane (Semi-Rigid),
and Flexible.
* Connector options to suit most types of equipment.
Catalogs
Short Probe Catalogue
56 Pages
