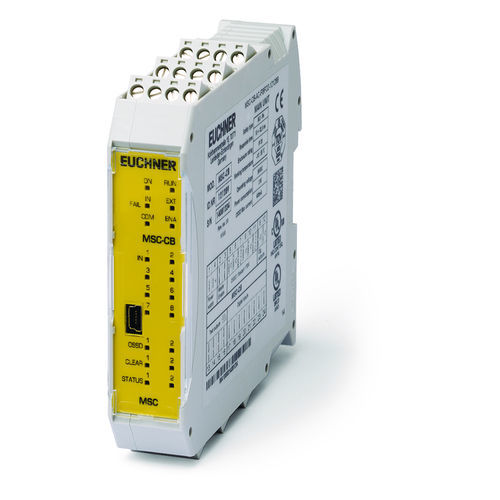

PLe safety relay MSC-CB-AC-FI8FO2-121289

DIN raildual-channelcompact

• Freely programmable base unit for use as a standalone device or expandable with various expansion modules • 8 single-channel /4 dual-channel inputs • 2 control inputs • 2 dual-channel semiconductor outputs (PL e, category 4) • 2 monitoring outputs • PC connection for the “EUCHNER Safety Designer” software • Optional memory module for configuration • Compact housing with width of only 22.5mm • Simple diagnostics via LED displays • Plug-in screw terminals • Inputs and outputs • 8 single-channel / 4 dual-channel inputs • 2 control inputs for starting/restarting semiconductor outputs or for external device monitoring (EDM) • 2 dual-channel outputs (PL e, category 4) • 4 test outputs for monitoring for short circuits and overload states • 2 monitoring outputs programmed via the EUCHNER Safety Designer software • MSC system An MSC system consists of a base unit and max. 14 expansion modules. You can use this base unit to expand your MSC system with max. 128 inputs, 16 dual-channel safe outputs and 32 monitoring outputs. You can use up to 4 expansion modules of the same time in your MSC system. Accessories MSC system An MSC system consists of a base unit and max. 14 expansion modules. You can use this base unit to expand your MSC system with max. 128 inputs, 16 dual-channel safe outputs and 32 monitoring outputs. You can use up to 4 expansion modules of the same time in your MSC system. Accessories • Plug-in screw terminals (order no. 121321) must be ordered separately • An expansion plug (order no. 121308) is additionally required for use with expansion modules •
