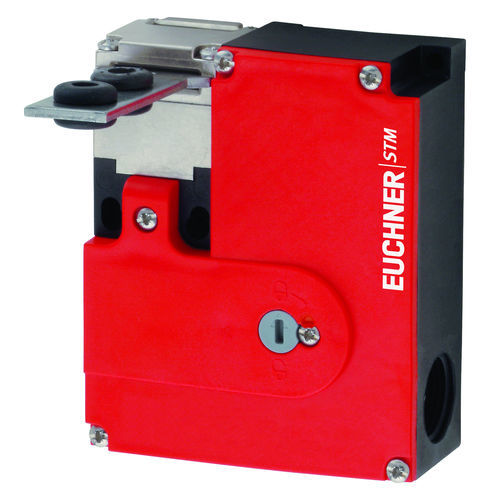

Safety switch STM1A-222B230-Msingle-poleIECIP67
Add to favorites
Compare this product
Characteristics
- Number of poles
- single-pole
- Protection level
- IEC, IP67
- Other characteristics
- AC, door, DC, thermoplastic, safety, electromechanical
- Primary current
4 A
- Voltage
24 V, 230 V
- Operating temperature
Min.: -22 °C
(-8 °F)Max.: 55 °C
(131 °F)
Description
• Actuating head made of metal
• Auxiliary release on the front
• Can be adjusted in 90° steps
Guard locking type
STM1
Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the guard locking solenoid.
Switching element
ÜK
For monitoring the guard locking (built-in solenoid), slow-action switching contact 1 NC
Combination available:
222
Slow-action switching contact 2 NC
Auxiliary release
This is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer.
