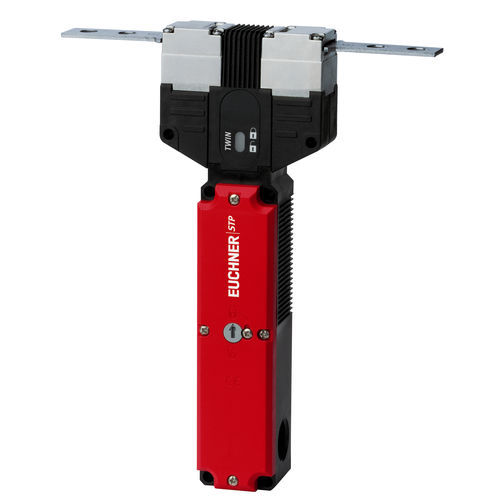

Safety switch STP-TW-3A-2131AC024MIP67ACdoor
Add to favorites
Compare this product
Characteristics
- Protection level
- IP67
- Other characteristics
- AC, door, DC, solenoid, electromechanical, safety
- Primary current
1 mA, 4 mA
- Voltage
12 V, 24 V, 230 V, 250 V
- Operating temperature
Max.: 55 °C
(131 °F)Min.: -20 °C
(-4 °F)
Description
• Two actuating heads made of metal
• Simultaneous monitoring of two safety doors
• Auxiliary release on the front
• With door monitoring contact
Can be adjusted in 90° steps
Solenoid operating voltage
AC/DC 24 V +10%, -15%
Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the guard locking solenoid.
Switching element
2131
Slow-action switching contact 2 NC + 1 NO + 1 NC (door monitoring contact)
Auxiliary release
This is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer.
