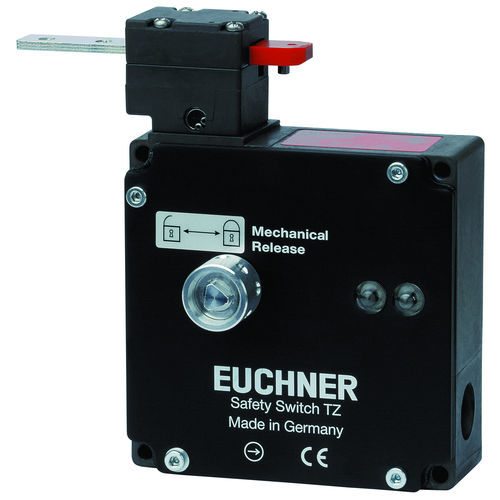

Single-pole switch TZ1LB024MVAB-C2159
IP67with separate actuatorsolenoid

Single-pole switch - TZ1LB024MVAB-C2159 - EUCHNER GmbH + Co. KG - IP67 / with separate actuator / solenoid
Single-pole switch - TZ1LB024MVAB-C2159 - EUCHNER GmbH + Co. KG - IP67 / with separate actuator / solenoid
Add to favorites
Compare this product
Go to the EUCHNER GmbH + Co. KG website for more information

Characteristics

Number of poles
single-pole
Protection level
IP67
Other characteristics
with separate actuator, solenoid, with indicator light, safety, magnetic, built-in
Primary current

1 A, 4 A

Voltage

Max.: 3,000 V

Min.: 12 V

Operating temperature

Max.: 80 °C
(176 °F)

Min.: -25 °C
(-13 °F)

Description

• Auxiliary release on the front, release with a triangular key according to DIN 22417 • Two LED displays, red and green • Actuating head fitted left Solenoid operating voltage and LED function display 24 V AC/DC -15%, +10% Guard locking type TZ1 Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the solenoid. Switching elements SK For monitoring the door/actuator position ÜK For monitoring the guard locking (built-in solenoid) 2131H Slow-action switching contact 3 NC + 1 NO 3131H Slow-action switching contact 2 NC + 2 NO
