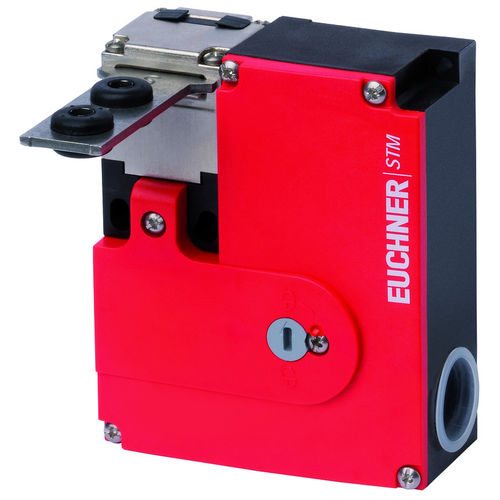

Safety switch STM1A-222B024-M
single-poleIECIP67

Safety switch - STM1A-222B024-M - EUCHNER GmbH + Co. KG - single-pole / IEC / IP67
Safety switch - STM1A-222B024-M - EUCHNER GmbH + Co. KG - single-pole / IEC / IP67
Safety switch - STM1A-222B024-M - EUCHNER GmbH + Co. KG - single-pole / IEC / IP67 - image - 2
Add to favorites
Compare this product
Go to the EUCHNER GmbH + Co. KG website for more information

Characteristics

Number of poles
single-pole
Protection level
IEC, IP67
Other characteristics
plastic, with separate actuator, with guard locking, with housing, safety
Primary current

1 mA, 4 mA

Voltage

3 V, 12 V, 24 V, 230 V

Operating temperature

Max.: 55 °C
(131 °F)

Min.: -20 °C
(-4 °F)

Description

• Actuating head made of metal • Auxiliary release on the front Solenoid operating voltage AC/DC 24 V +10%, -15% Guard locking type STM1 Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the guard locking solenoid. Switching element ÜK For monitoring the guard locking (built-in solenoid) slow-action switching contact 1 NC Combination available: 222 Slow-action switching contact 2 NC Auxiliary release This is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer.
