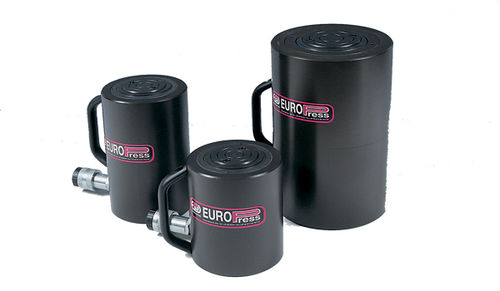

Hydraulic cylinder CML series
single-actingaluminumthreaded

hydraulic cylinder
hydraulic cylinder
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Configuration
single-acting
Material
aluminum
Other characteristics
threaded
Stroke

Max.: 150 mm
(5.906 in)

Min.: 50 mm
(1.969 in)

Force

Max.: 929 kN

Min.: 496 kN

Description

Five models of this type of cylinder are manufactured in a high resistance aluminium cylinder body (and end of stroke nut for 100 tonne) with a protective treatment, to increase the resistance to corrosion. Wiper seals are fitted to prevent the penetration of dirt. It’s recommended to carefully avoid, despite the protective treatment, the eventual flow of water which, due to the galvanic currents, can deteriorate the surface. Given the sensitivity of the material to work stress we suggest a maximum use of 5000 work cycles. All models are supplied with interchangeable grooved pushing saddle and have two lateral threaded holes to enable the mounting of a tilt saddle to reduce the effects of any side loading. They are also fitted with a removable carry handle. OPERATIONAL AREAS Because of their extremely low weight and dimensions these cylinders are particularly suitable for use in applications where lightness and ease of handling are paramount. ACCESSORIES : – Separate ZTT tilt saddle reduces the effects of possible off-centre loads. STANDARD : – Pushing saddle prevents any risk of rod deformation. It’s important to drop the pressure inside the cylinder before disconnecting the quick coupler to avoid problems if re-inserting or lowering the load. In case some pressure persists it is possible to use the apposite tool KTS38 in order to lower the pressure in the couplers. The CML cylinders accompanied with the PN pumps form a handy, simple and efficient set.

Catalogs

No catalogs are available for this product.

See all of Euro Press Pack Spa Unipersonale‘s catalogs
