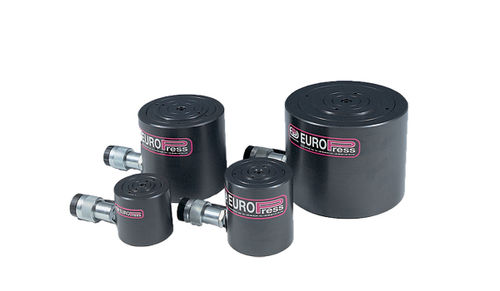

Hydraulic cylinder CMP series

single-actingthreadedlow-profile

Their main feature is their long stroke in respect to their shortness but even though the CMP cylinders represent the widest range of low profile spring return cylinders. All cylinders have a grooved rod top and two threaded holes for the mounting of the tilt saddle. Holes at the bottom of the cylinder are available as an extra and the wiper avoids the prenetration of dirt. OPERATIONAL AREAS The small dimensions and the complete treatment against corrosion makes these cylinders ideal for lifting, levelling, supporting and pressing operations in restricted working areas and/or harsh environments. General maintenance work, industrial assembly and construction are among the most common applications for this type of cylinder . ACCESSORIES: – Separate ZTT tilt saddle reduces the effects of possible off-centred loads. STANDARD: – Tilt saddle mounting holes. OPTIONS : – F version Cylinder with base mounting holes for fixing purposes. It’s important to drop the pressure inside the cylinder before disconnecting the quick coupler to avoid problems if re-inserting or lowering the load. In case some pressure persists it is possible to use the apposite tool KTS38.
