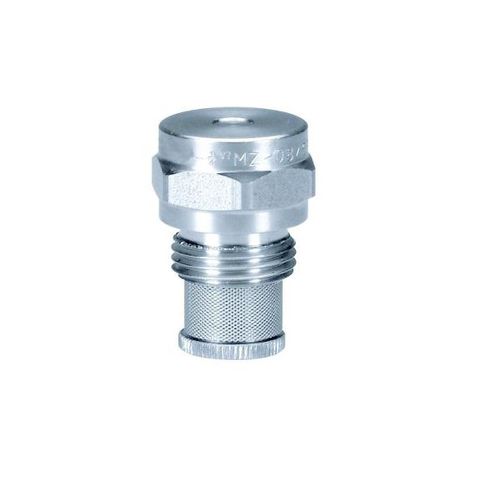

Liquid nozzle MZatomizinghollow-conestainless steel
Add to favorites
Compare this product
Characteristics
- Fluid
- for liquids
- Function
- atomizing
- Stream
- hollow-cone
- Material
- stainless steel, brass
- Other characteristics
- hydraulic
- Orifice diameter
0.15 mm, 0.2 mm, 0.3 mm
(0.006 in, 0.008 in, 0.012 in)- Flow
Max.: 16.1 l/min
(4.25 us gal/min)Min.: 2.6 l/min
(0.69 us gal/min)- Pressure
Max.: 100 bar
(1,450.4 psi)Min.: 10 bar
(145 psi)
Description
MZ nozzles make the smallest drops available on market of hydraulic nozzles.
The spray is semi full cone (with less spray in the middle), the opening is 55-60°.
The FZ model has the same characteristics of MZ but with M10 female connection.
