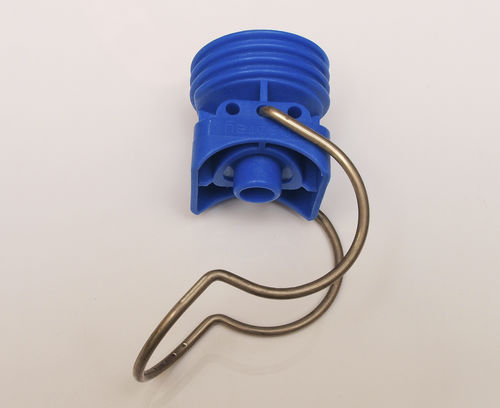

SINGLE SPRING PIPE CLAMPS - ZPL MODEL
Characteristics
Pipe clamps “ZPL”series are designed to ensure easy installation and
reduced maintenance time.
The assembly clamp-nozzle-ring is mounted on the collectors only
with the use of one or two elastic brackets in AISI.
Everything by hand, without any tools, installing the clamp, orienting
the nozzle tip and thanks to retainer locks in the desired position.
The clamps can be installed on pipes 1” and 1-1/4”.
The realization of clamps in plastic material, polypropylene
reinforced with fiberglass, allows their use in environments with high
temperatures and corrosive liquids.
Material:
Body: polypropylene reinforced with fiberglass
Spring/s: Aisi302 (Aisi316 on request)
O-ring: NBR (VITON on request)
Max. working temperature:
82ºC
Max working pressure:
3 bar for version single spring
5 bar for version double springs
