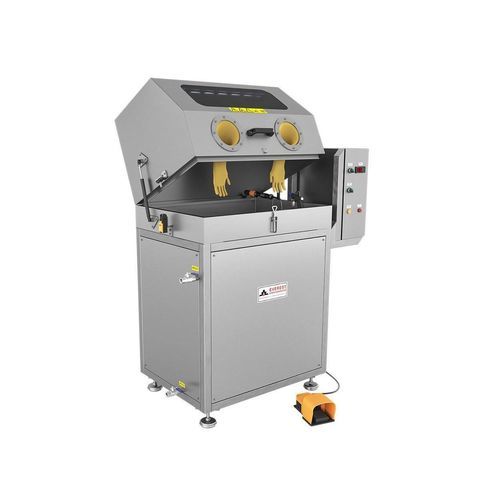

Water washing system MSP seriesmanualprocessparts
Add to favorites
Compare this product
Characteristics
- Technology
- water
- Operational mode
- manual
- Applications
- process, parts
- Other characteristics
- stainless steel, compact
Description
Overview
Compact cabin-type manual hand-washing system designed for rough cleaning of heavily polluted parts. Suitable for light to medium weight items and for manual operation in production or maintenance environments.
General Features
MSP cabin-type manual hand washing system performs rough cleaning of parts coming from production or maintenance lines using manual hand washing and brushing operations.
Washing system
Manual washing using pressurized water at 10 bar.
Working principle
Manual hand washing combined with brushing to clean the entire surface of the part.
Tank system
Single-tank system with integrated heating for process fluid.
Construction
Entirely constructed from 304 stainless steel for contact and shell components.
Control panel
Standard switchgear electric control panel for operation and safety interlocks.
Advantages
Washing steps
Addable Features
Technical specifications
Technical specifications (summary)
Compact cabin-type manual hand-washing system designed for rough cleaning of heavily polluted parts. Suitable for light to medium weight items and for manual operation in production or maintenance environments.
General Features
MSP cabin-type manual hand washing system performs rough cleaning of parts coming from production or maintenance lines using manual hand washing and brushing operations.
Washing system
Manual washing using pressurized water at 10 bar.
Working principle
Manual hand washing combined with brushing to clean the entire surface of the part.
Tank system
Single-tank system with integrated heating for process fluid.
Construction
Entirely constructed from 304 stainless steel for contact and shell components.
Control panel
Standard switchgear electric control panel for operation and safety interlocks.
Advantages
- Space-saving compact design
- Environmentally friendly operation
- Energy-efficient heating and circulation
- Suitable for light to medium weight parts (up to 75 kg loading)
- Simple manual installation and use
- Optimized for rough cleaning of heavily polluted materials
Washing steps
- All processes performed inside a single cabinet
- Washing, brushing and compressed-air drying stages
Addable Features
- Pump filtration modules
- Oil skimmer
- Additional optional system features available on request
Technical specifications
- Model MSP 860 — Cabin dimensions (W x D x H): 800 x 600 x 500 mm; Max. loading weight: 75 kg; External dimensions (W x L x H): 700 x 1300 x 1570 mm
- Model MSP 1280 — Cabin dimensions (W x D x H): 1200 x 600 x 500 mm; Max. loading weight: 75 kg; External dimensions (W x L x H): 900 x 1720 x 1570 mm
Technical specifications (summary)
- Washing system: Manual washing with 10 bar pressurized water
- Working principle: Manual hand washing and brushing to clean entire part surface
- Tank system: Single tank with heating
- Construction: 304 stainless steel
- Control panel: Switchgear electric panel (standard)
- Washing steps: Washing, brushing and compressed-air drying in a single cabinet
- Optional features: Pump filtration; Oil skimmer; Other addable system features
- Model variants: MSP 860, MSP 1280 (see technical specifications above)
