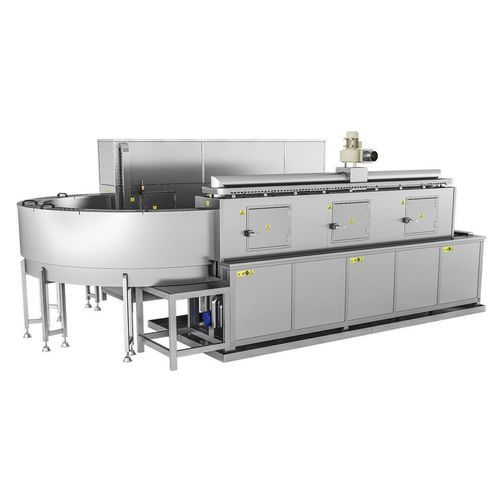

Washing tunnel with belt conveyor TunClean

rinsingwith dryingdegreasing

Short description: Cost-effective labour savings, environmentally friendly and energy-efficient tunnel conveyor pressurised spray washing system TunClean. Automatic loading/unloading can be integrated; suitable for medium-weight items and inline mass-production use.

General Features: TunClean tunnel conveyor spray washing systems operate on a continuous-flow principle to remove heavy contaminants such as oil, grease and production residues from parts exiting production or maintenance lines. Standard supply includes a 304 stainless-steel wire mesh conveyor; special conveyor types available on request.

Key Product Data:
Washing system: Tunnel conveyor pressurised spray cleaning system
Working principle: Mass-production cleaning using the conveyor belt
Tank system: Single or multiple tanks depending on configured stages with separate heating per tank
Feeding: Manual or automatic (continuous or indexing conveyor options)
Construction: Reconstructed units entirely in 304 stainless steel
Control panel: Siemens touchscreen HMI panel as standard

Technical Models:
Model | Loading Width mm | Loading Height mm | External dimensions (w*l*h) mm
TunClean 320 W | 300 | 200 | 1250*2300*2050
TunClean 425 W | 400 | 250 | 1400*2550*2100
TunClean 530 W | 500 | 300 | 1500*2800*2200
TunClean 640 W | 600 | 400 | 1600*3050*2350
TunClean 850 W | 800 | 500 | 1850*3300*2600
TunClean 320 WR | 300 | 200 | 1250*3800*2050
TunClean 425 WR | 400 | 250 | 1400*4300*2100
TunClean 530 WR | 500 | 300 | 1500*4650*2200
TunClean 640 WR | 600 | 400 | 1600*5100*2350
TunClean 850 WR | 800 | 500 | 1850*5600*2600
TunClean 320 WRD | 300 | 200 | 1250*5500*2050
TunClean 425 WRD | 400 | 250 | 1400*6100*2100
TunClean 530 WRD | 500 | 300 | 1500*6550*2200
TunClean 640 WRD | 600 | 400 | 1600*7000*2350
TunClean 850 WRD | 800 | 500 | 1800*7800*2350
TunClean 320 PWRD | 300 | 200 | 1250*7000*2050
TunClean 425 PWRD | 400 | 250 | 1400*7850*2100
TunClean 530 PWRD | 500 | 300 | 1500*8400*2200
TunClean 640 PWRD | 600 | 400 | 1600*9050*2350
TunClean 850 PWRD | 800 | 500 | 1850*10100*2600

Advantages:

• Cost-effective labour savings
• Environmentally friendly operation
• Energy-efficient design
• Optional automatic loading/unloading with indexing conveyor
• Integration capability for serial production lines
• Suitable for medium-weight parts

Washing steps:

• Washing
• Washing – rinsing
• Washing – rinsing – drying
• Pre-washing – washing – rinsing – drying
• Extra rinsing (optional)
• All process recipes programmable per stage

Addable Features:

• Water-stripping air knives
• Pump filtration systems
• Drip pans
• Heavy material weight capacity upgrade
• Oil separation / skimming units
• Alternative conveyor belt options
• Robotic system integration
• Additional prewash stage
• Additional rinse stages
• Other system-specific features on request

Technical specifications:

• Product family: TunClean pressurised spray tunnel conveyor washing systems
• Standard conveyor: 304 stainless-steel wire mesh (special types on request)
• Construction material: 304 stainless steel for reconstructed units
• Control: Siemens touchscreen HMI panel as standard
• Tank configuration: Single or multiple tanks with separate heating per stage
• Feeding options: Manual or automatic (continuous or indexing conveyors)
• Intended use: Mass-production cleaning of heavy impurities (oil, grease, production residues)
