Hot water high-pressure cleaner BogieClean

stationaryindustrialwater saving

Product overview

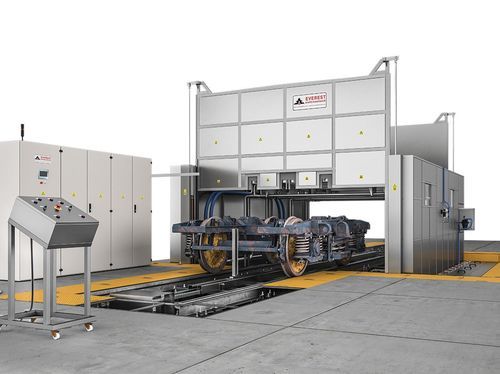

BogieClean is a cabinet-type high-pressure washing system designed for the railway and transportation sectors. It delivers enclosed, programmable high-pressure washing and rinsing for heavily soiled rolling-stock components. The system integrates forward/backwards moving nozzles, pneumatic front door and options for automatic loading and unloading, pump filtration and oil separation; all processes can be executed within a single cabinet.

General Features

• Cabinet-type high-pressure washing system with all processes performed inside one cabinet
• Forward/backwards movable nozzle system for targeted cleaning of all surfaces
• Double-tank arrangement with independent heating
• Automatic loading and unloading from ground-level using track-mounted loading rails
• Construction in 304 stainless steel
• Siemens touchscreen HMI control panel (standard)
• Designed for energy-efficient operation and reduced effluents
• Suitable for components from light to very heavy; accommodates medium and large-sized items

Washing steps

• All process stages take place in a single cabinet
• Sequential washing and rinsing stages controlled by programmable recipes
• Individual process recipes can be stored and recalled

Addable Features

• Pump filtration system
• Oil separation unit
• Optional two-door configuration with pneumatic front-loading and rear-unloading doors
• Other optional system modules and custom design variants

Technical specifications

• Application: Railway and transportation industries (bogies, wheelsets, bearings, engine and transmission parts)
• Type: Cabinet / cabin high-pressure spray washing system
• Washing method: High-pressure washing with forward/backwards movable nozzles
• Feeding/Loading: Automatic loading/unloading from ground-level track line; front-side feed
• Tank system: Double tank with independent heating
• Construction material: 304 stainless steel
• Doors: Pneumatic front door; optional two-door pneumatic front-load/rear-unload system
• Control panel: Siemens touchscreen HMI (standard)
• Filtration: Pump filtration (optional)
• Optional: Oil separation, automatic loading/unloading systems, additional modules and custom designs
