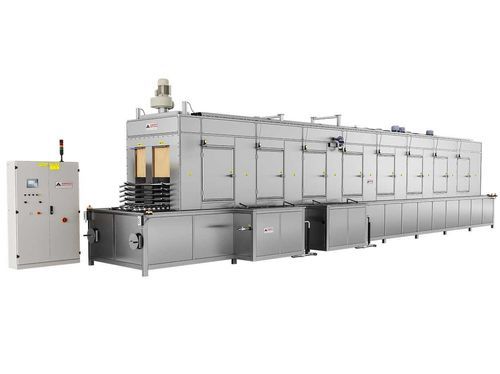

Washing tunnel with drying TunClean-KLT

plastic cratessprayautomatic

Short description
Cost-effective labour savings, environmentally friendly, energy efficient; automatic loading and unloading system can be integrated with an indexing conveyor (optional); can be integrated into a serial production line (optional); suitable for medium-weight items.

General Features:

• Washing system: conveyor line spray cleaning system
• Working principle: serial cleaning on the conveyor belt for different sized dunnage
• Boiler system: single or multiple tanks with separate heating
• Feeding: manual or automatic loading
• Construction: entirely from 304 stainless steel
• Control panel: Siemens touch panel as standard

Technical Specifications:
Model | Loading Width (mm) | Loading Height (mm) | External dimensions (L - W - H) mm
KLT 632/300 WD | 600 | 20-320 | 8800*2050*2450
KLT 632/600 WD | 600 | 2x20-320 | 8800*2700*2450
KLT-632/1000 WD | 600 | 2x20-320 | 12750*2700*2450
KLT-632/1500 WD | 600 | 2x20-320 | 17300*2700*2450
KLT-1450/300 WD | 1000 | 20-450 | 10600*2200*3000
KLT-1450/600 WD | 1000 | 2x20-450 | 10600*3000*3000
KLT-1450/1000 WD | 1000 | 2x20-450 | 14700*3000*3000
KLT-1450/1500 WD | 1000 | 2x20-450 | 19600*3000*3000
KLT 632/300 WRD | 600 | 20-320 | 11000*2050*2450
KLT 632/600 WRD | 600 | 2x20-320 | 11000*2700*2450
KLT-632/1000 WRD | 600 | 2x20-320 | 15300*2700*2450
KLT-632/1500 WRD | 600 | 2x20-320 | 20200*2700*2450
KLT-1450/300 WRD | 1000 | 20-450 | 13200*2200*3000
KLT-1450/600 WRD | 1000 | 2x20-450 | 13200*3000*3000
KLT-1450/1000 WRD | 1000 | 2x20-450 | 17750*3000*3000
KLT-1450/1500 WRD | 1000 | 2x20-450 | 23000*3000*3000
KLT 632/300 WRRD | 600 | 20-320 | 13200*2050*2450
KLT 632/600 WRRD | 600 | 2x20-320 | 13200*2700*2450
KLT-632/1000 WRRD | 600 | 2x20-320 | 17850*2700*2450
KLT-632/1500 WRRD | 600 | 2x20-320 | 23100*2700*2450
KLT-1450/300 WRRD | 1000 | 20-450 | 15800*2200*3000
KLT-1450/600 WRRD | 1000 | 2x20-450 | 15800*3000*3000
KLT-1450/1000 WRRD | 1000 | 2x20-450 | 20800*3000*3000
KLT-1450/1500 WRRD | 1000 | 2x20-450 | 26400*3000*3000

Advantages:

• Labour cost savings
• Environmentally friendly
• Energy efficient
• Automatic loading and unloading system can be integrated with an indexing conveyor (optional)
• Can be integrated into a serial production line (optional)
• Suitable for medium-weight items

Washing steps:

• wash - rinse
• wash - rinse - dry
• wash - rinse - rinse - dry
• All process recipes can be programmed separately

Addable Features:

• Water stripping air knives
• Pump filtration
• Drip pan
• Heavy material adjustment
• Oil separation
• Automatic loading and unloading system
• Different conveyor belt options
• Robotic system integration
• Additional prewash
• Additional rinse
• Extended drying stage
• Other system features

Characteristics / Technical specifications:

• Designed for sequential cleaning of KLT boxes/crates, KLT covers and pallets (dunnage) in a single tunnel canopy
• Adjustable machine guides to suit the KLT being processed
• Conveyor line spray cleaning system with serial processing
• Single or multiple tanks with separate heating options
• Manual or automatic feeding (loading/unloading)
• Construction fully in 304 stainless steel
• Siemens touch panel control as standard
