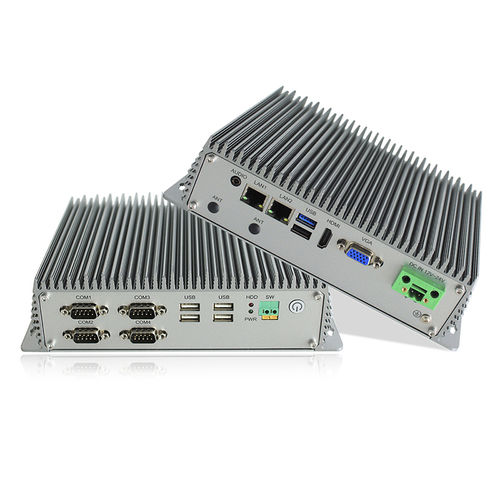

Industrial PC Monolith-1000OA

EDGEwall-mountedIntel® Celeron dual-core

The Monolith-1000OA is a compact fanless industrial PC for system integrators, automation specialists, machine builders and technical-site operators. Built around a Intel® Core™ i3-6100U Dual Core 2.4 GHz / Intel® Core™ i5-6200U Dual Core 2.5 GHz processor, it combines an aluminum alloy chassis, industrial power input (2-pin Terminal Block Connector with Power Input 12~24 VDC), rich I/O and a fanless design for continuous operation. Recommended industrial uses This industrial PC is designed for supervision, building automation, production-line automation, IoT gateway, machine control, technical kiosks, data acquisition, security systems, industrial display and integration into professional cabinets or control boxes. Its fanless architecture reduces moving parts, lowers maintenance requirements and improves reliability in dusty environments or installations exposed to wide temperature ranges. - Power input : 2-pin Terminal Block Connector with Power Input 12~24 VDC - Power consumption : ≤20W - Material : Aluminum alloy shell - Colors : Grey / silver / black optional - Mounting : 208 x 100 mm / 208 x 60 mm - Product dimensions : 220 x 145 x 62 mm - Packing size : 360 x 180 x 320 mm - Net weight : 1.5 KG - Operating temperature : -20~70°C ( -4~158°F ) - Storage temperature : -30~80°C (-22~176°F) - Relative humidity : 5%~95%@40°C, non-condensing - Vibration : 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis - EMC compliance : CE, FCC, Class A, RoHS
