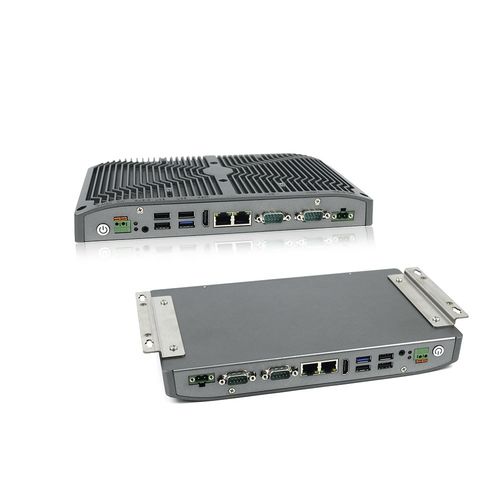

EDGE PC Monolith-5000JA

wall-mountedIntel® Celeron Quad CoreIntel® Celeron J1900

The Monolith-5000JA is a compact fanless industrial PC for system integrators, automation specialists, machine builders and technical-site operators. Built around a Intel® Celeron® J1900 Quad-core 2.0 GHz processor, it combines an aluminum alloy chassis, industrial power input (2-pin Terminal Block Connector with Power Input 9~36 VDC), rich I/O and a fanless design for continuous operation. Recommended industrial uses This industrial PC is designed for supervision, building automation, production-line automation, IoT gateway, machine control, technical kiosks, data acquisition, security systems, industrial display and integration into professional cabinets or control boxes. Its fanless architecture reduces moving parts, lowers maintenance requirements and improves reliability in dusty environments or installations exposed to wide temperature ranges. Its 33 mm low-profile chassis is useful when mechanical space is a key constraint. - M.2 expansion : 1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT ) 1*M.2 ( Key-B, 3042, USB 2.0, 4G ) - Power input : 2-pin Terminal Block Connector with Power Input 9~36 VDC - Electrical protections : OVP (over-voltage), OCP (over-current), RPP (reverse polarity) - Power consumption : ≤25W - Material : Aluminum alloy shell - Colors : Grey / silver / black optional - Mounting : 272 x 90 mm / 272 x 60 mm - Product dimensions : 258 x 158 x 33 mm - Packing size : 360 x 180 x 320 mm - Net weight : 1.2 KG - Operating temperature : -20~70°C ( -4~158°F ) - Storage temperature : -40~85°C (-40~185°F) - Relative humidity : 5%~95%@40°C, non-condensing - Vibration : 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
