EDGE PC Monolith-60005B

wall-mountedIntel® CoreTM i5-8265U Whiskey LakeSATA

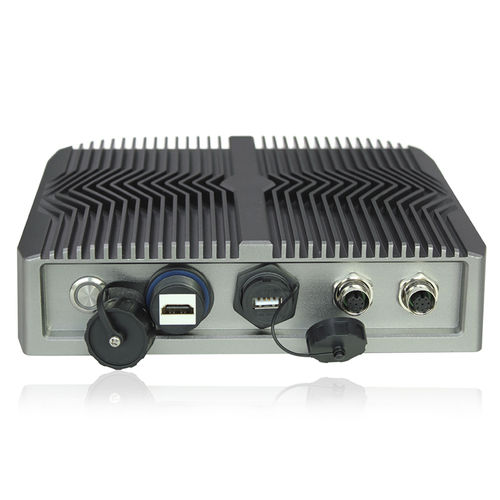

---------------- The Monolith-60005B is a waterproof fanless industrial PC designed for environments exposed to dust, humidity, water splashes and frequent wash-down operations. Its aluminum alloy enclosure, M12 connectors and IP67 / IP69K rating make it a robust platform for edge computing, automation and field supervision. It is based on a 8th Gen Intel® Whiskey Lake Core™ i5-8265U 1.6 GHz processor, supports an operating temperature range of -30~70°C ( -22~158°F ), and uses a wide-range power input: 2-Pin M12 Power Input 9~36 VDC. Recommended industrial uses This model is especially suitable for demanding environments: food processing, wash-down areas, pharmaceutical or cosmetics production, logistics, protected outdoor equipment, technical-installation supervision, special-purpose machines and remote stations. M12 connectors secure network, USB, serial and video links in installations exposed to vibration, splashes and operational constraints. The B variant keeps the same rugged format while reducing the I/O set to the essentials for simpler installations or remote stations. - Power consumption : ≤45W - Material : Aluminum alloy shell - Colors : Grey / silver / black optional - Mounting : 232 x 90 mm / 100 x 100 mm - Product dimensions : 220 x 180 x 55 mm - Packing size : 360 x 180 x 320 mm - Net weight : 1.5 KG - Operating temperature : -30~70°C ( -22~158°F ) - Storage temperature : -40~85°C (-40~185°F) - Relative humidity : 5%~95%@40°C, non-condensing - Vibration : 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis - IP rating : IP67 / IP69K - EMC compliance : CE, FCC, Class A, RoHS
