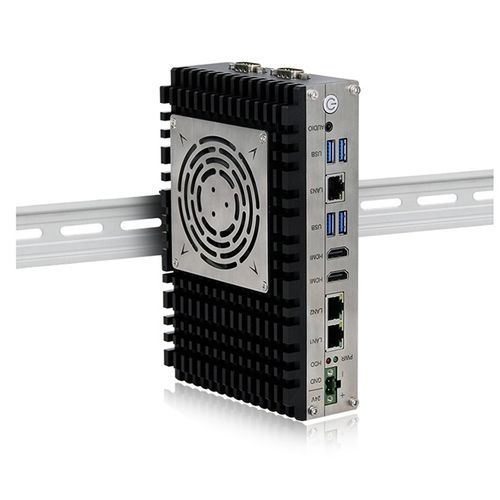

Industrial PC Monolith-2012D

EDGEDIN railIntel® Core i5-1235U

The Monolith-2012D is a compact fanless industrial PC designed for cabinet, control-box and automation-panel integration, with DIN-Rail mounting. It combines a 12th Gen Intel® Core™ i3-1215U / i5-1235U / i7-1255U processor, industrial I/O and a wide-range power input (2-pin Terminal Block Connector with Power Input 9~36 VDC) for supervision, machine control and industrial IoT gateway applications. Recommended industrial uses This industrial PC is designed for supervision, building automation, production-line automation, IoT gateway, machine control, technical kiosks, data acquisition, security systems, industrial display and integration into professional cabinets or control boxes. Its fanless architecture reduces moving parts, lowers maintenance requirements and improves reliability in dusty environments or installations exposed to wide temperature ranges. Its DIN-Rail format makes it easy to integrate cleanly into electrical cabinets and automation boxes. - Power input : 2-pin Terminal Block Connector with Power Input 9~36 VDC - Electrical protections : OVP (over-voltage), OCP (over-current), RPP (reverse polarity) - Power consumption : ≤45W - Material : Aluminum alloy shell - Colors : Grey / silver / black optional - Mounting : 200 x 25 mm / DIN-Rail - Product dimensions : 185 x 116 x 50 mm - Packing size : 360 x 180 x 320 mm - Net weight : 1.2 KG - Operating temperature : -30~70°C ( -22~158°F ) - Storage temperature : -40~85°C (-40~185°F) - Relative humidity : 10% to 95% (non-condensing) - Vibration : 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis - EMC compliance : CE, FCC, Class A, RoHS
