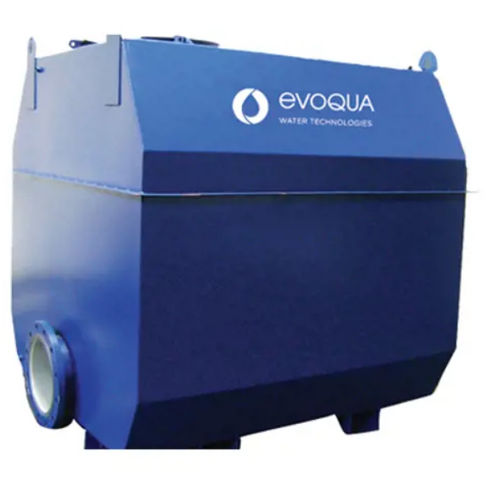

Activated carbon adsorber FB series

Description
The FB vapor-phase carbon adsorbers are engineered for efficient removal of volatile organic compounds (VOCs) from low- to moderate-flow air streams. The rectangular vessel design minimizes pressure drop and optimizes activated carbon utilization. Units are delivered with activated carbon preinstalled, eliminating on-site carbon handling. Deep carbon beds (minimum three feet) provide extended contact time for effective VOC capture. Three model options cover applications up to 3,000 SCFM.

Features

• Shipped with activated carbon installed to avoid on-site loading
• Available for purchase or rental
• Inlet/outlet connection adapters available at no additional cost
• Rectangular vessel design for low pressure drop at rated flow rates
• Deep carbon bed (minimum 3 feet) for enhanced VOC removal
• Capacity: up to 3,000 SCFM (three model options)

Applications

• Industrial plant emissions control
• Soil vapor extraction (SVE) system off-gases
• Emissions control for waste processing operations (e.g., tank cleaning)
• VOC removal from air stripper off-gases
• Backup VOC control device for thermal oxidizers

Specifications
Phase: Vapor

Technical specifications

• Vessel design: rectangular for low pressure drop and efficient carbon utilization
• Carbon bed depth: minimum 3 feet
• Flow capacity: up to 3,000 SCFM (three model options)
• Delivered with activated carbon preinstalled (no on-site carbon handling required)
• Available for sale or rental
• Standard inlet/outlet adapters included at no extra cost
