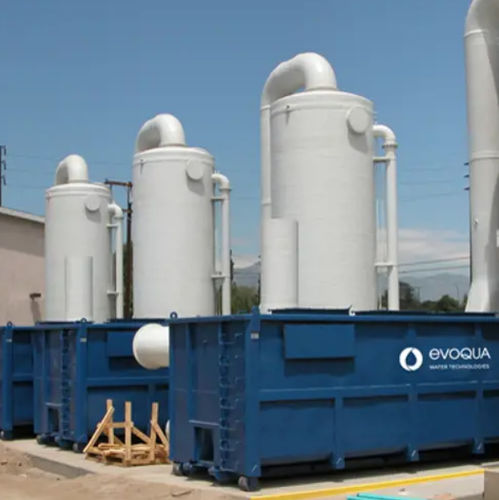

Activated carbon adsorber RB series

Overview
The RB Roll-off Carbon Adsorbers are designed for the removal of VOCs from high-flow air streams and other gas-phase emission control applications. RB Series units are supplied transported with activated carbon already installed, enabling immediate operation without on-site carbon handling.

Key benefits

• Eliminates the need for on-site carbon handling
• No on-site loading/unloading equipment required
• Lower pressure drop compared with comparable packed systems
• Efficient removal of VOCs from vapor streams

Features

• Delivered with carbon installed
• Available for sale or rental
• Delivery and pickup via rolloff truck
• Various inlet/outlet adapters available at no additional cost
• Can be supplied with pelletized activated carbon
• Deep carbon bed depths (minimum three feet)

Applications

• Industrial plant emissions control
• Soil vapor extraction (SVE) remediation off-gases
• Emission control for waste processing operations (e.g., tank cleaning)
• VOC removal from air stripper off-gases
• Backup VOC control device for thermal oxidizers

Technical specifications

• Phase: Vapor
• Models and carbon load: RB5 (5,000 lb activated carbon; treating up to 5,000 cfm), RB10 (10,000 lb; up to 9,000 cfm), RB20 (20,000 lb; up to 12,000 cfm), RB12HV (12,000 lb; up to 18,000 cfm)
• Carbon bed depth: minimum three feet
• Transport: delivered loaded with activated carbon (no on-site loading required)
• Available for sale or rental; delivery/pickup via rolloff truck
