electric servo-cylinder / ball screw / aluminum profile / DC
CPSM series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

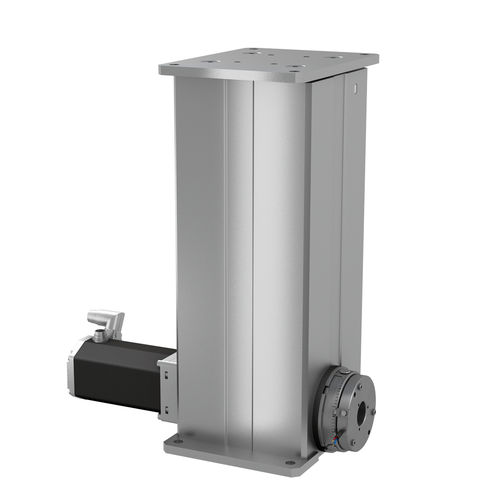

electric servo-cylinder electric servo-cylinder - CPSM series
{{requestButtons}}

Characteristics

  • Type:

    electric

  • Technology:

    ball screw

  • Other characteristics:

    aluminum profile, DC

  • Stroke :

    700 mm (27.559 in)

  • Force:

    5,000 N, 21,000 N

  • Speed:

    0.1 m/s (0.32808399 ft/s)

Description

CPSM
Benefits:
Plug and play solution, replacing complex mechanical lifting mechanism
Precise operation with very high stiffness and high excentric loads
Simplified design process for the machine
Improved process control and cycle time
Features:
Servo or brushless DC motor for high speed up to 100 mm/s and customized motor adapter
Motor encoder system and high quality gearbox enable high positioning accuracy and high repeatability (0,1 mm)
Customized top and bottom plate, aluminum profile colour (anodized) to fit application design needs
Optional brake to release the motor when it’s in position and optional dampening system to protect the pillar from shock loads
Telescopic pillars CPSM are the ideal solution to combine strong guiding functions with linear movements. The robust, manually adjusted and virtually backlash-free aluminum extrusions are able to carry high excentric loads in push and pull directions. To provide enough power to lift and lower heavy weights with high speed, the pillars are equipped with brushless DC or servo motors. Of course, Ewellix also supports the usage of motors with a customizable motor interface.
Optional brakes and damping elements are key features that result in effective usage in heavy duty industrial applications.
