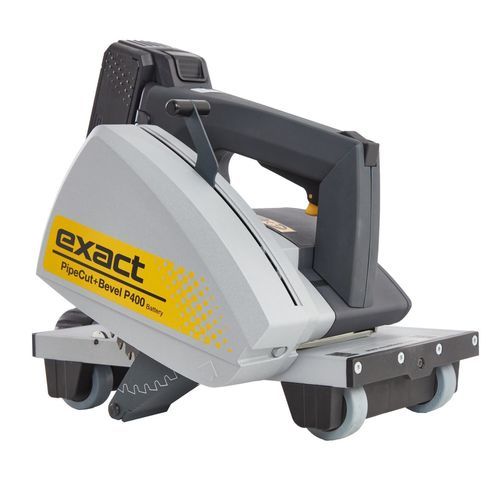

Motorized pipe cutting and beveling machine PipeCut P400

portable

Overview
Compact cordless pipe saw for cutting and beveling plastic pipes onsite. The PipeCut P400 battery cuts various plastic pipe materials up to 400 mm OD. This model uses solid rubber tire wheels instead of a gripper unit to prevent marks on the pipe and to give the operator a better feel of the machine. The machine includes a lower blade guard that closes instantly when it is no longer in contact with the pipe, enhancing user safety.

Key benefits

• Easy and very safe to operate
• Unique method for plastic pipe installations
• Cut and bevel (15°) plastic pipes in a single process
• Can be used for cutting only or beveling only
• Blade suitable for all common plastic pipe materials (PE, PP, PVC, etc.)
• Designed in Finland, made in the EU

Standard package includes

• Shoulder bag
• PipeCut P400 battery pipe saw with TCT P150 blade installed
• Pipe supports: 4× P400 Single
• Exact 18V 5.0 Ah lithium-ion batteries, 2 pcs
• Battery charger, 1 pc
• 5 mm hex socket key, fitted to the machine
• Operating instructions
• Cut & Bevel blade 148

Usage notes
The saw can be used for cutting alone or for cutting and beveling plastic pipes simultaneously using Cut & Bevel blades to achieve a clean 15° bevel in a single step.

Technical specifications

• Product number: 7048135 (w/ Cut&Bevel blade)
• Product number: 7048135-10 (w/o Cut&Bevel blade)
• Pipe material: Plastics
• Pipe OD: 50 mm – 400 mm (2" - 16")
• Max. wall thickness: 20 mm cut (18 mm Cut+Bevel)
• Voltage: 18 V DC
• Power: 730 W
• No-load speed: 3500 /min (3500 rpm)
• Blade diameter: 140 mm, 150 mm
• Mounting bore: 62 mm (2.44")
• Weight: 6.2 kg (w/o battery) // 7.0 kg (w/ battery) (14 lbs // 15 lbs)
• Loading capacity of supports: 260 kg (4 supports) (573 lbs)
