Plastic pipe cutter HYDRA Infinity ∞

cast ironcopperFRP

Overview

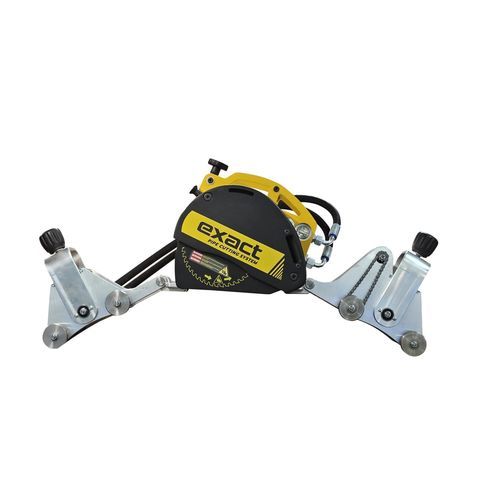

PipeCut HYDRA Infinity is a hydraulic pipe saw engineered for wet and underwater cutting of large-diameter pipes. It uses a chain-type gripping mechanism with flexible chain segments, includes a blade depth adjustment mechanism as standard and can be upgraded to a Cut & Bevel system (Cut & Bevel Package sold separately). Hydraulic power can be provided by a dedicated power pack or from an excavator via an oil flow divider.

At a Glance

• Hydraulic pipe-cutting system designed for wet and underwater use.
• Handles pipe outer diameters from 360 mm (14”) upward; expandable up to 1850 mm with supplied chain set.
• Chain-type gripping mechanism with flexible segments to extend the gripping unit for larger pipes.
• Standard blade depth adjustment mechanism.
• Convertible to Cut & Bevel with the dedicated package (sold separately).
• Optional tensioner: crank-operated or gearbox for connection to a power drill (power-drill version sold separately).

The Benefits

• Fast and simple attachment to the pipe.
• Secure clamping: saw remains attached during the cut.
• Fast cutting with precise results.
• Operable in wet and underwater environments.
• Hydraulic drive compatible with standard hydraulic power packs or excavator supply.
• Adjustable blade penetration for controlled cuts.
• Upgradeable to Cut & Bevel configuration (package sold separately).
• Designed in Finland, manufactured in the EU.

Standard package includes

• The equipment is supplied in two bags.
• First bag:
  • Shoulder bag
  • PipeCut HYDRA Infinity motor unit with Cermet 165 blade installed
  • Tensioner device + tensioner device with crank
  • Operating instructions
  • 5 mm Allen key attached to the saw
  • Open-end wrench for blade change
  • Two hydraulic hoses (2 × 1 m)
• Second bag:
  • Shoulder bag
  • Box with chain segments for attaching the saw to the pipe including: 2 m – 2 pcs; 1 m – 1 pc; 5 m – 1 pc; 2 m – 2 pcs; 1 m – 1 pc (chain sections supplied to cover large diameters)

Technical specifications

• Product number: 7010408
• Suitable pipe materials: Steel, Stainless steel, Ductile (nodular) cast iron, Glass fiber, Aluminium, Copper, Plastics
• Pipe OD: 360 mm – up to 1850 mm (with supplied chain set)
• Max. wall thickness: 25 mm
• Hydraulic pressure: Max. 150 bar
• Hydraulic flow: Max. 25 l/min
• Blade diameter options: 140 mm, 165 mm, 180 mm, 190 mm
• Mounting bore: 62 mm
• Weight: 27 kg (without chains)
• Recommended oil quality: ISO VG 32 (biodegradable oil recommended)
• Operating temperature: +40°C to -20°C
