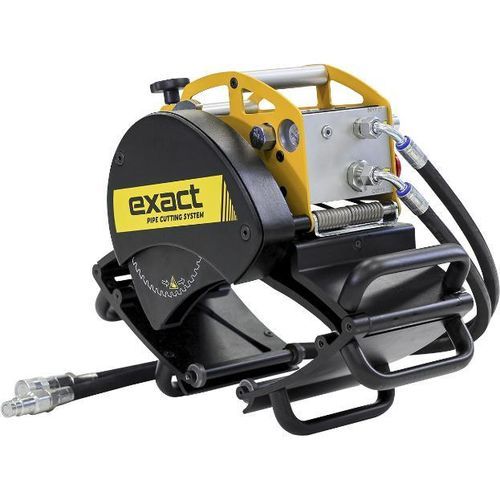

Steel pipe cutter HYDRA 360

stainless steelFRPcast iron

Product Overview
PipeCut HYDRA 360 is a compact hydraulic pipe saw engineered for safe and reliable cutting in wet and underwater environments. The saw is driven by a compact hydraulic power unit or connected directly to a machinery hydraulic system (max. 150 bar, 25 l/min). HYDRA 360 can be upgraded to a Cut & Bevel system with the Cut & Bevel Package for HYDRA (sold separately). Designed in Finland, made in the EU.

At a glance
PipeCut HYDRA 360 accommodates pipe outer diameters from 75 mm to 360 mm (3”–14”). Maximum wall thickness: 25 mm for steel and 45 mm for plastics. Standard blade depth adjustment enables controlled, repeatable cuts. Ideal for renovation and maintenance tasks where wet or submerged cutting is required.

The Benefits

• Safe operation in wet and underwater conditions
• Compact and serviceable hydraulic design suitable for confined spaces
• Fast cutting with accurate blade depth control
• Operates from compact hydraulic power unit or machine hydraulic system (max. 150 bar, 25 l/min)
• Convertible to Cut & Bevel system with optional package
• Designed in Finland, manufactured in the EU

Standard package includes

• Shoulder bag
• PipeCut HYDRA 360 motor unit with Cermet 165 blade installed
• Two hydraulic hoses (2 × 1 m)
• 5 mm Allen key attached to the saw
• Open end wrench for blade change
• Operating instructions

Technical specifications
Product number: 7010409
Pipe material: Steel, Stainless/Inox, Ductile (nodular cast iron), Glass fiber, Aluminium, Copper, Plastics
Pipe OD: 75 mm–360 mm (3”–14”)
Max. wall thickness: 25 mm (steel), 45 mm (plastics)
Hydraulic pressure: Max. 150 bar (Max. 2,200 PSI)
Hydraulic volume: Max. 25 l/min (Max. 6,6 GPM)
Blade diameter options: 140 mm, 165 mm, 180 mm, 190 mm
Mounting bore: 62 mm (2.44”)
Weight: 18.5 kg (41 lbs)
Oil quality requirement: ISO VG 32 (biodegradable oil recommended)
Operating temperature: -20°C to +40°C
