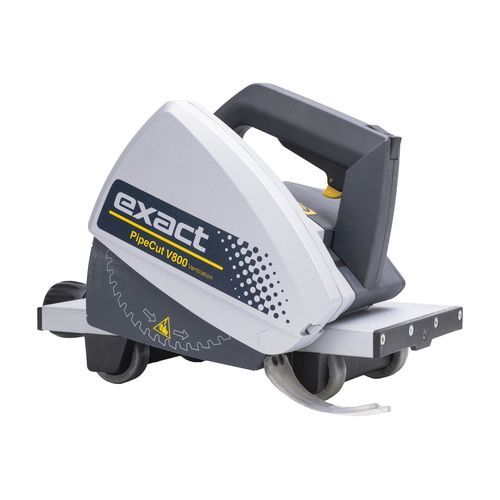

Stainless steel pipe cutter PipeCut V800E

handheldelectric

Overview PipeCut V800E is a portable, precision-engineered pipe saw for fast, accurate cutting of spiral ventilation ducts up to 800 mm outside diameter. It replaces the previous Exact V1000 model (the only change is the lower upper limit of 800 mm). The machine delivers straight cut ends ready for connection and uses solid rubber tire wheels (instead of the Exact gripper unit) to avoid marking the pipe while improving operator control and feel.

The Benefits

• Easy and safe to operate
• Compact design while capable of cutting large-diameter ducts
• Consistent, straight cut finishes ready for immediate connection
• Compatible only with the Cermet V155 blade (mounting bore 65 mm / 2.55")
• Designed in Finland, manufactured in the EU

Standard package includes

• Shoulder bag
• Exact PipeCut V800E pipe saw with Cermet V155 installed
• 5 mm hex socket key (fitted to the machine)
• Operating instructions

Compatibility & Notes

• This machine can only be used with the Cermet V155 blade due to its unique mounting bore.
• Optional special pipe supports are available to hold spiral ducts from 75 mm to 800 mm (3"–31.5").
• Intended for stainless ventilation pipes.

Technical specifications

• 110 V version: Product number 7020800; Pipe material: Stainless ventilation pipes; Pipe OD: 75 mm – 800 mm; Max. wall thickness: 1.5 mm (6 mm seam); Power: 1100 W; No-load speed: 1600–3500 /min; Blade diameter: 155 mm; Mounting bore: 65 mm; Weight: 6.0 kg; Electronic unit: Blade speed preselection, automatic fuse, soft start, torque control.
• 220 V version: Product number 7020800; Pipe material: Stainless ventilation pipes; Pipe OD: 75 mm – 800 mm; Max. wall thickness: 1.5 mm (6 mm seam); Power: 1200 W; No-load speed: 1600–3500 /min; Blade diameter: 155 mm; Mounting bore: 65 mm; Weight: 6.0 kg; Electronic unit: Blade speed preselection, automatic fuse, soft start, torque control.
• Blade required: Cermet V155 (mounting bore 65 mm / 2.55").
